312.0025.50 EG52
Recommended:
Material number 312002550EG52

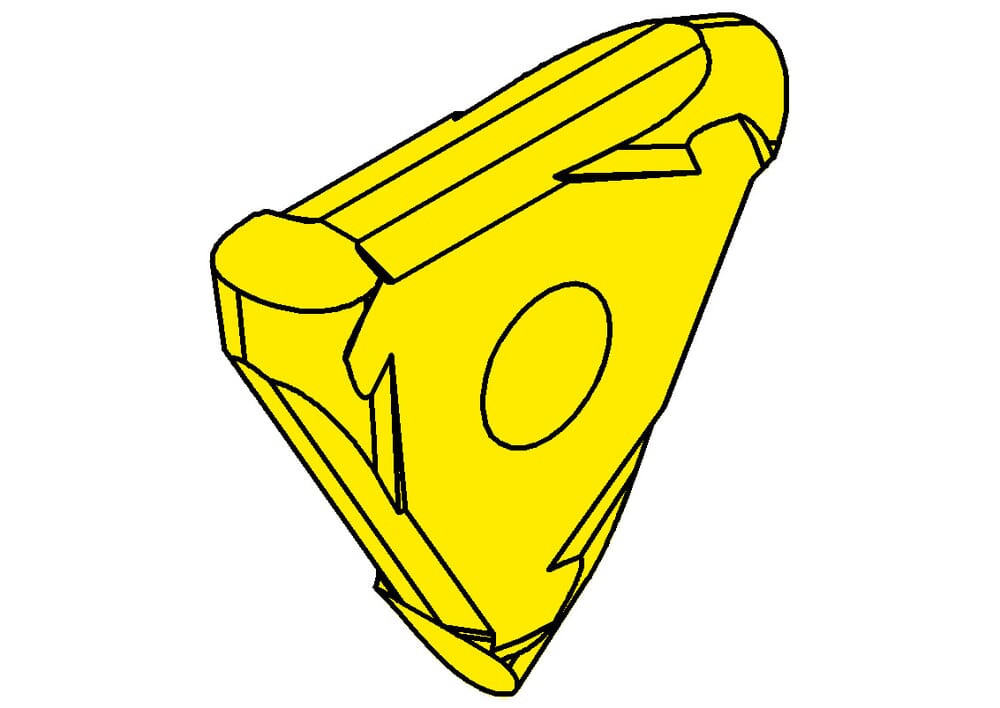

HORN Insert 312.0025.50 EG52 for Turning
Width of groove (w)
0.197 ˝
5 mm
us-cutting
Yes
cutting
1
tool-application
static
Cancellation (a1)
0.008 ˝
0.2 mm
Katalog_SSC
31204N
Smallest workpiece diameter (Dmin)
1.378 ˝
35 mm
Full radius (r1)
0.098 ˝
2.5 mm
Free-throw width (t1)
0.059 ˝
1.5 mm
| Downloads | |
|---|---|
| 312_0025_50_EG52-DXF.DXF | Download |
| 312_0025_50_EG52-STP.STP | Download |
| 312_0025_50_EG52-ISO.XML | Download |
| 312_0025_50_EG52-DIN.XML | Download |
| Download all files | |
