306.5514.02 TA45
Material number 306551402TA45

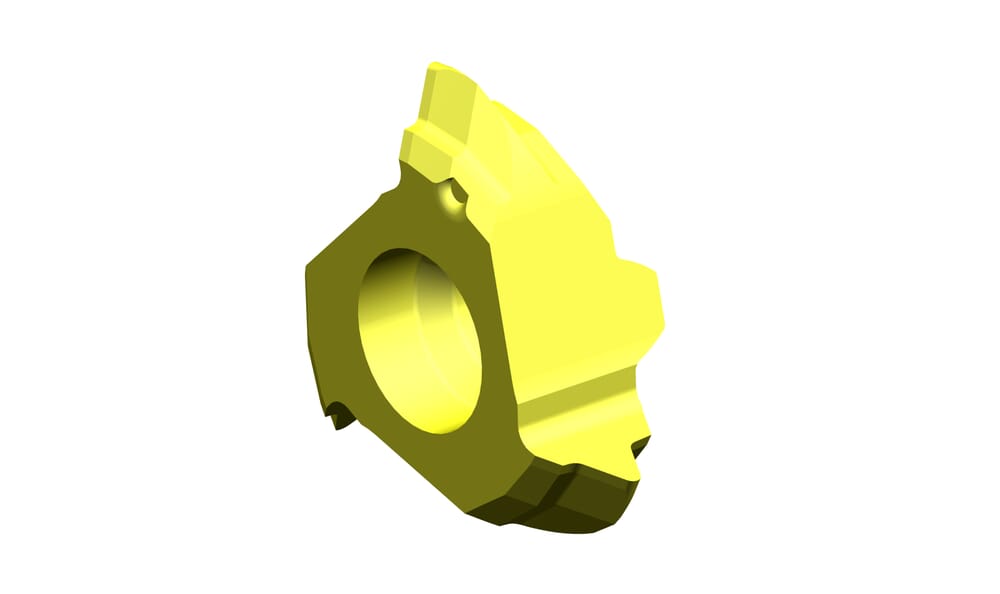

HORN Insert 306.5514.02 TA45 for Gewinden
Cutting diameter (Ds)
0.461 ˝
11.7 mm
Katalog_SSC
306060R
Setting length (E)
0.079 ˝
2 mm
Cutting insert height, Cutting insert thickness (s)
0.134 ˝
3.4 mm
tool-application
rotating
| Downloads | |
|---|---|
| 306_5514_02_TA45-ISO.XML | Download |
| 306_5514_02_TA45-DXF.DXF | Download |
| 306_5514_02_TA45-STP.STP | Download |
| 306_5514_02_TA45-DIN.XML | Download |
| Download all files | |
