N110.0500.02.07.B1 AN25

Recommended:

Also suitable for:

Material number N11005000207B1AN25

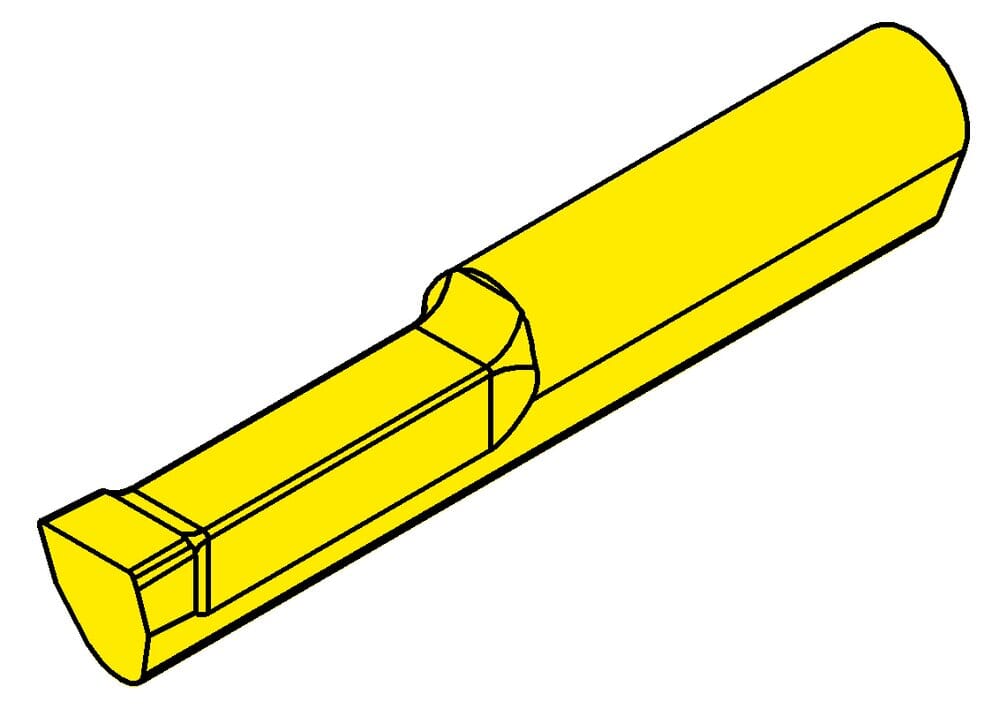

HORN 110 style broach insert - B1 geometry N110.0500.02.07.B1 AN25 for Broaching

Extension length (l3)

1.929 ˝

49 mm

us-cutting

Yes

tool-application

both

Smallest bore diameter (Dmin)

0.354 ˝

9 mm

Corner radius (mm) (r)

0.008 ˝

0.2 mm

Total length (l5)

2.953 ˝

75 mm

Effective cutting length (l2)

1.575 ˝

40 mm

Katalog_SSC

110260

Cutting width (inch) (w)

0.197 ˝

5.01 mm
