N105.0298.01.01.A2 AN25

Recommended:

Also suitable for:

Material number N10502980101A2AN25

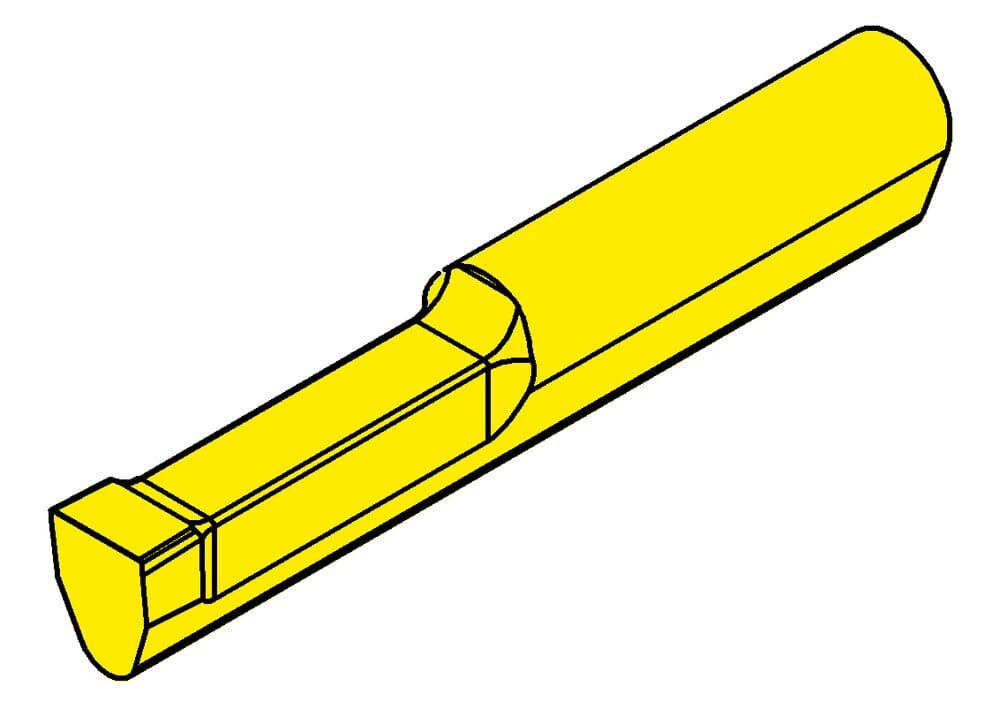

HORN 105 style broach insert - A2 geometry N105.0298.01.01.A2 AN25 for Broaching

Effective cutting length (l2)

0.472 ˝

12 mm

tool-application

both

Smallest bore diameter (Dmin)

0.256 ˝

6.5 mm

Extension length (l3)

0.709 ˝

18 mm

Total length (l5)

1.181 ˝

30 mm

Width of blank (b)

0.276 ˝

7 mm

Corner radius (r)

0.004 ˝

0.1 mm

Katalog_SSC

105125

Cutting width (inch) (w)

0.118 ˝

2.989 mm
