MD13.02.85.D20B
Material number MD130285D20B

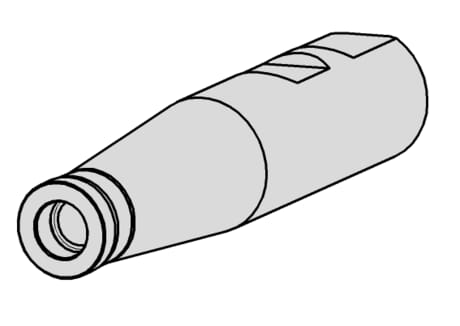

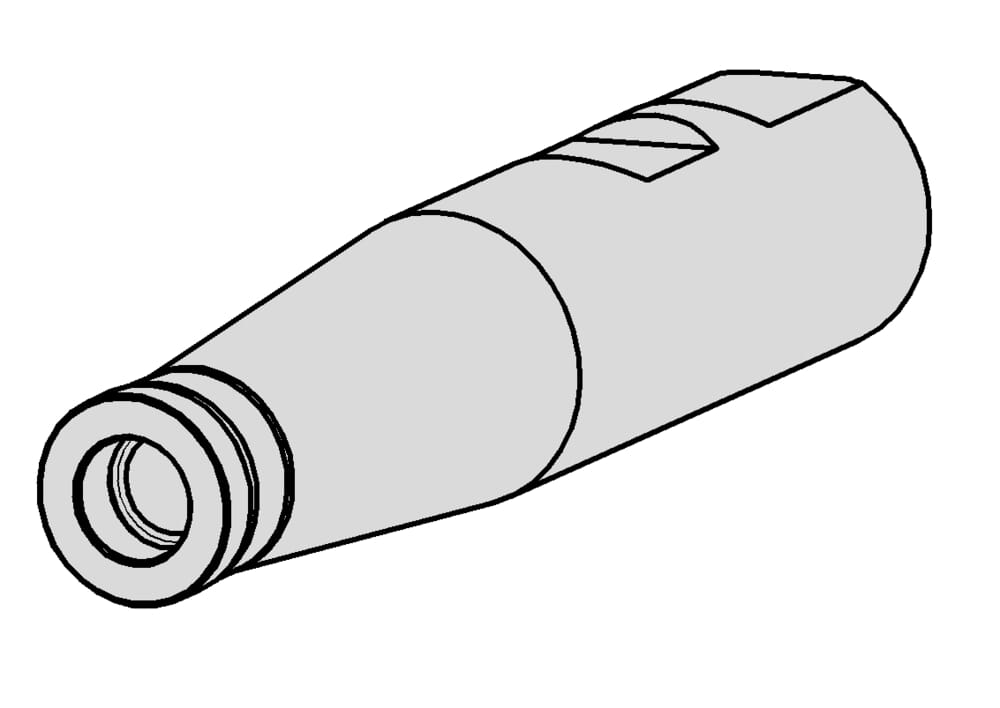

HORN Toolholder MD13.02.85.D20B for Milling
Katalog_CCTWS
08001
tool-application
rotating
Screw thread (d2)
M8
Total length (l1)
4.134 ˝
105 mm
Shank diameter (d)
0.787 ˝
20 mm
Neck length (l2)
0.276 ˝
7 mm
Shank length (l3)
2.165 ˝
55 mm
Flange diameter / hub diameter (d4)
0.512 ˝
13 mm
| Downloads | |
|---|---|
| MD13_02_85_D20B-DXF.DXF | Download |
| MD13_02_85_D20B-STP.STP | Download |
| MD13_02_85_D20B-ISO.XML | Download |
| MD13_02_85_D20B-DIN.XML | Download |
| Download all files | |
