M475.0063.M12.04.IK

Material number M4750063M1204IK

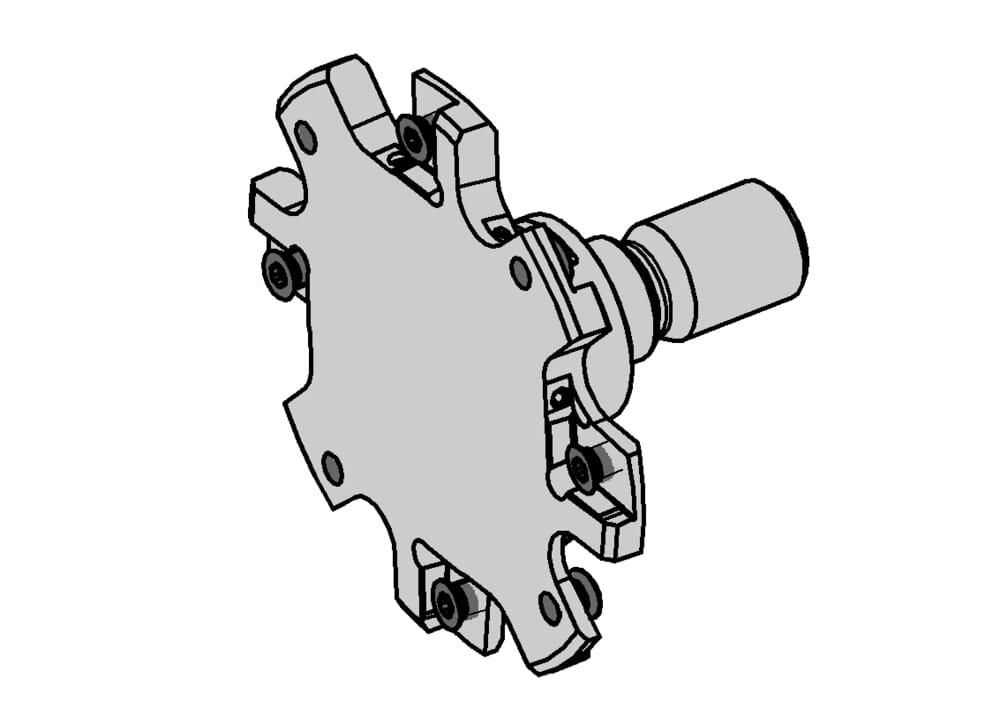

HORN screw-in cutter M475.0063.M12.04.IK for Milling

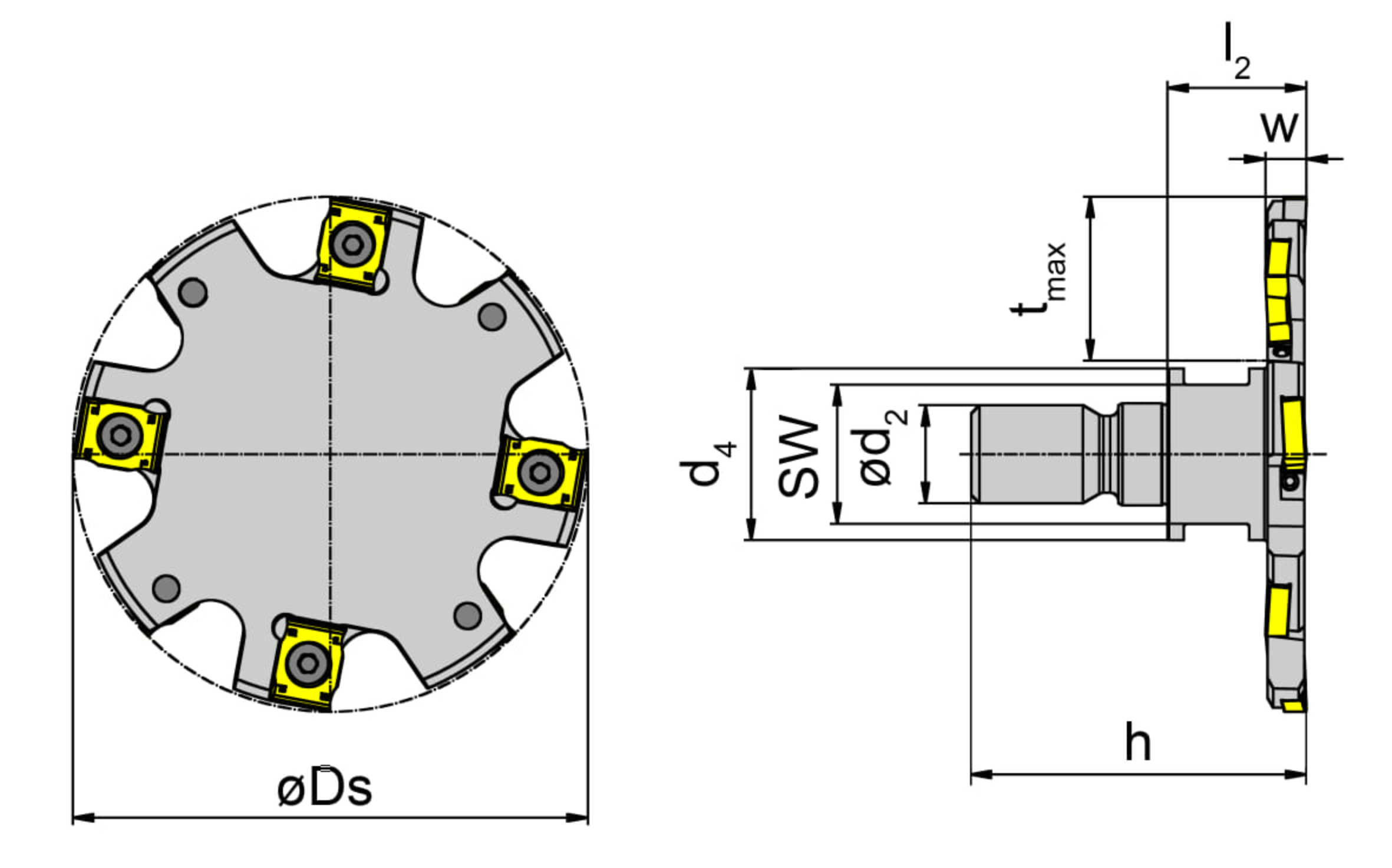

Maximum milling depth/ depth of groove (tmax)

0.787 ˝

20 mm

tool-application

rotating

Screw thread (d2)

M12

Key range (SW)

0.669 ˝

17 mm

Length from stop (l2)

0.669 ˝

17 mm

Total milling length with insert (h)

1.614 ˝

41 mm

Width of groove (mm) (w)

0.157 ˝

4 mm

Cutting diameter (Ds)

2.48 ˝

63 mm

Katalog_CCTWS

475022N

Diameter miller body (d4)

0.827 ˝

21 mm

Toolholder

LH100252533IK

Grundträger

HSKW-R849005001
