LH100.2525.33.IK
Material number LH100252533IK

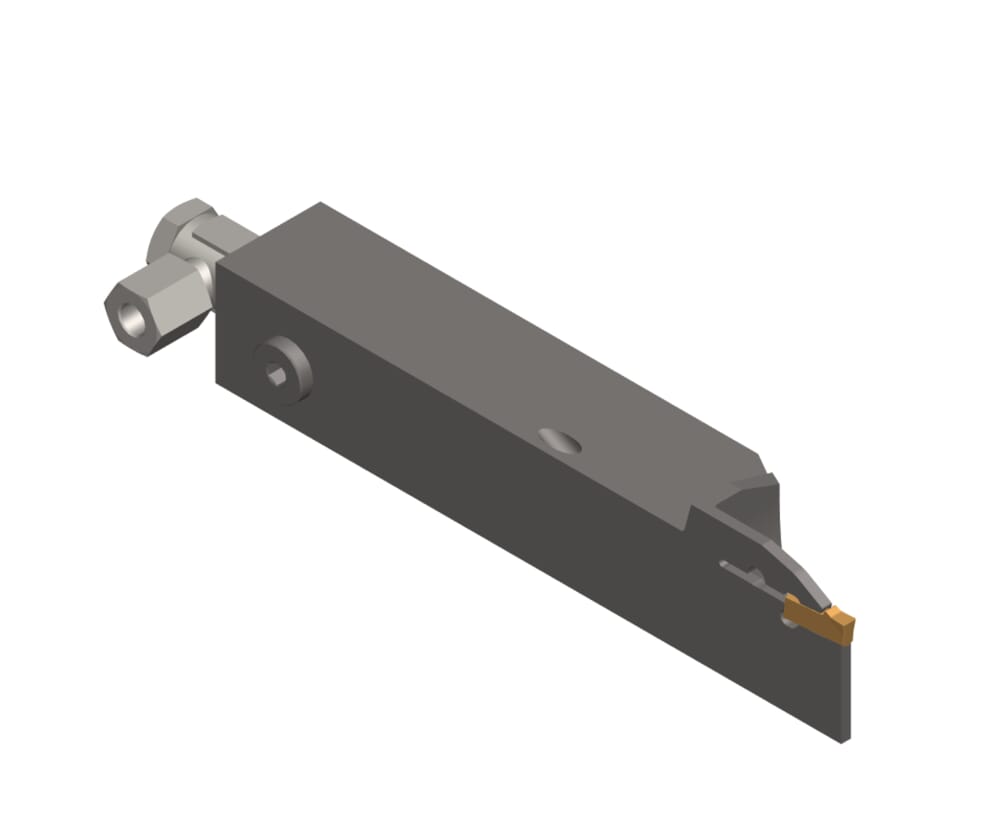

HORN Toolholder LH100.2525.33.IK for Turning
Maximum workpiece diameter (Dmax)
2.559 ˝
65 mm
Peak height (h1)
0.984 ˝
25 mm
Head length top (including cutting edge) (l3)
1.516 ˝
38.5 mm
Katalog_CCTWS
100038
Maximum insertion depth (tmax)
1.28 ˝
32.5 mm
Adjustment dimension (formula) (f)
f1+w/2
tool-application
static
Shank width (b)
0.984 ˝
25 mm
length-overall-imp
5.906 ˝
150 mm
head-length-imp
1.516 ˝
Head height (HK)
1.244 ˝
31.6 mm
Shank height (h)
0.984 ˝
25 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Adjustment dimension cutting center (f1)
0.939 ˝
23.85 mm
| Downloads | |
|---|---|
| LH100252533IK_20210626_071600627.DXF | Download |
| LH100_2525_33_IK_20171121_204634044.STP | Download |
