M409.032.M16.6.03

Material number M409032M16603

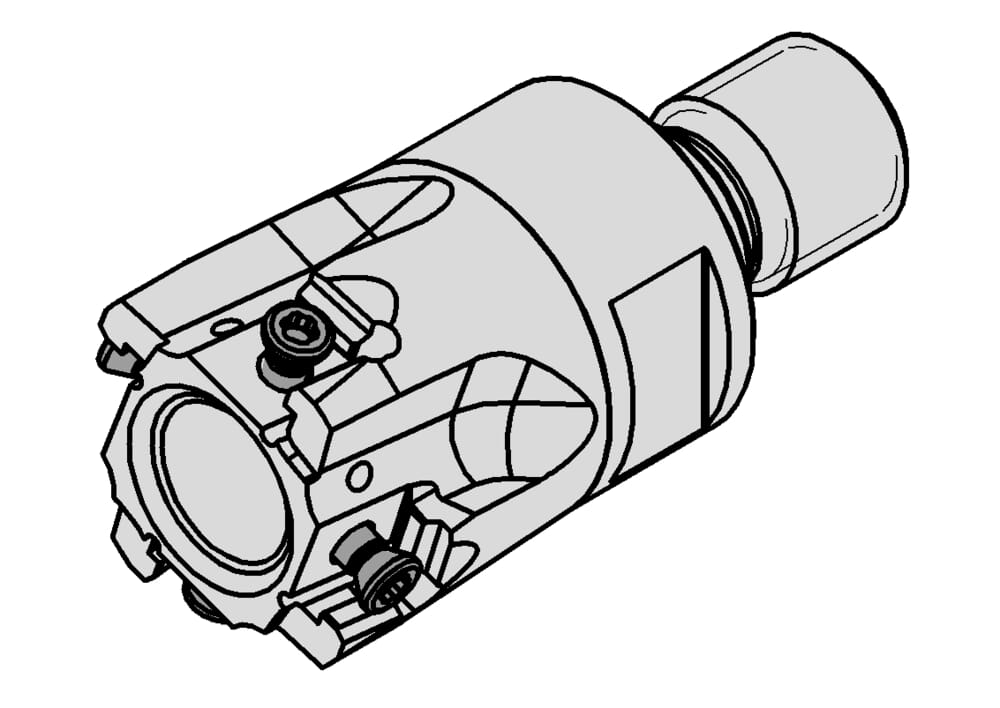

HORN screw-in cutter M409.032.M16.6.03 for Milling

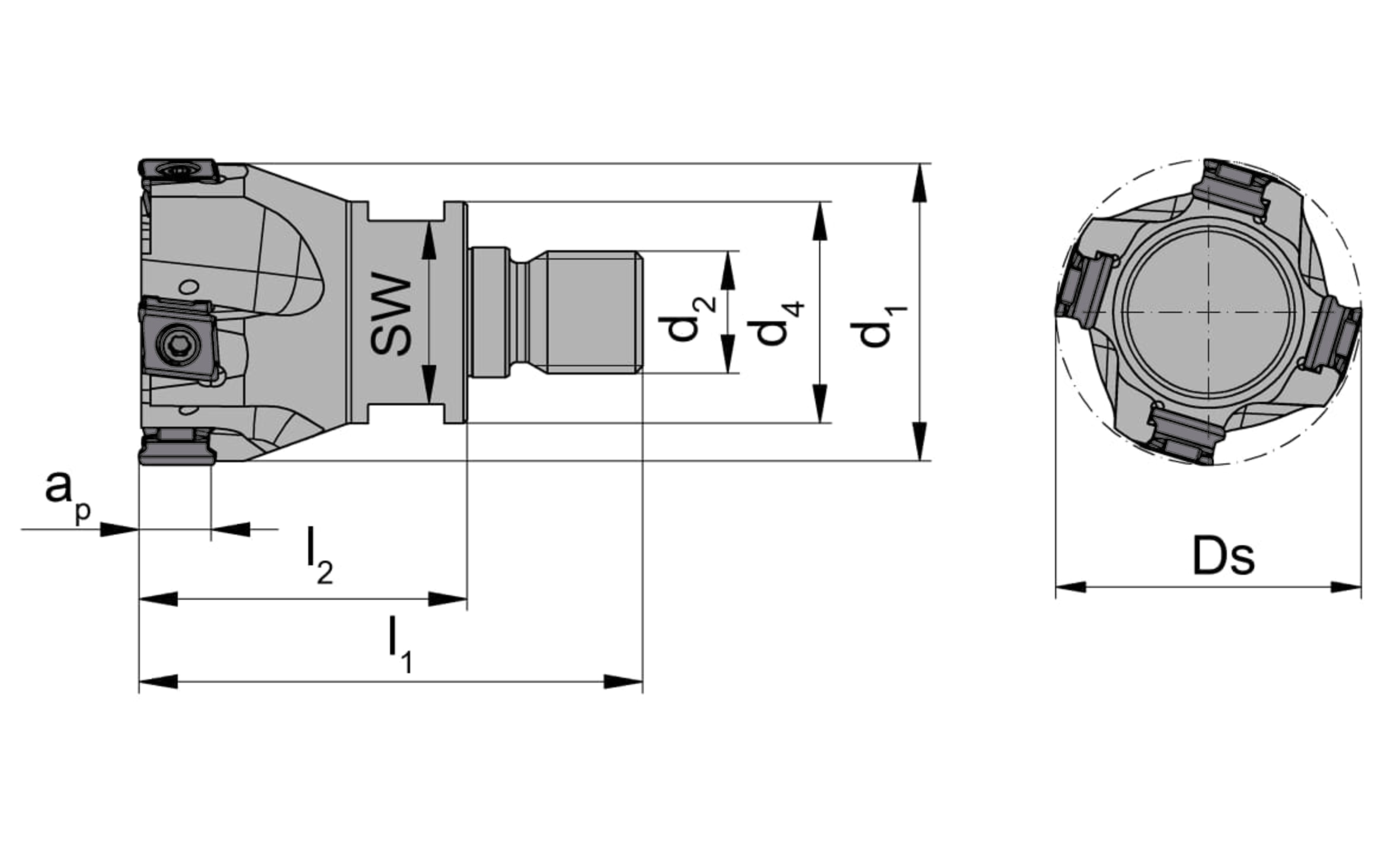

Neck diameter on stop (d4)

1.142 ˝

29 mm

tool-application

rotating

Screw thread (d2)

M16

Maximum stepover (ap) (ap)

0.366 ˝

9.3 mm

Key range (SW)

0.945 ˝

24 mm

Length from stop (l2)

1.693 ˝

43 mm

Total milling length with insert (l1)

2.598 ˝

66 mm

Cutting diameter (Ds)

1.26 ˝

32 mm

Katalog_CCTMS

16001

Katalog_CCTWS

40900R

Diameter miller body (d1)

1.22 ˝

31 mm
