M409.0125.A40.45.16

Material number M4090125A404516

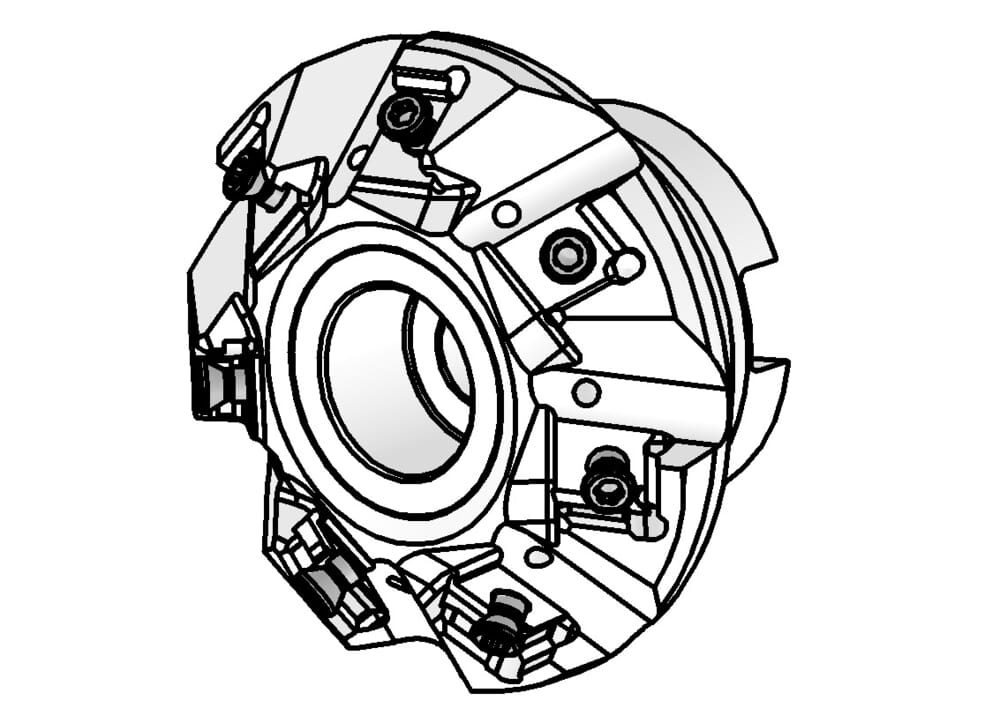

HORN tangential milling cutters M409.0125.A40.45.16 for Milling

Depth carrier cross groove (C)

0.354 ˝

9 mm

Maximum stepover (ap) (ap)

0.244 ˝

6.2 mm

cutting-depth-imp

0.244 ˝

6.2 mm

Miller length with indexable insert (h)

2.48 ˝

63 mm

Miller length without indexable insert (h2)

2.382 ˝

60.5 mm

Lowering for mounting screw head (d5)

2.205 ˝

56 mm

Mounting hole diameter (d2)

1.575 ˝

40 mm

Length from stop to base fastening screw head (l2)

1.378 ˝

35 mm

Width carrier cross groove (b)

0.646 ˝

16.4 mm

Diameter of the mandrel (dK)

3.504 ˝

89 mm

tool-application

rotating

Cutting diameter (Ds)

4.921 ˝

125 mm

Diameter miller body (d1)

5.551 ˝

141 mm

Katalog_CCTWS

40900R

insert

S229060038AS62
