M406.032.M16.6.05

Material number M406032M16605

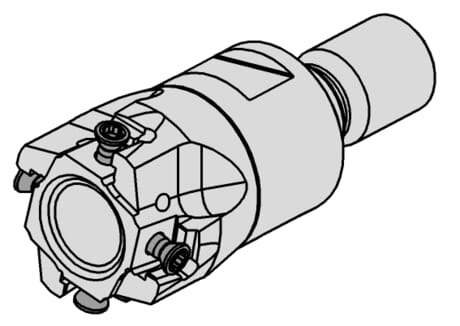

HORN tangential milling cutters type M406 M406.032.M16.6.05 for Milling

Neck diameter on stop (d4)

1.142 ˝

29 mm

tool-application

rotating

Screw thread (d2)

M16

Maximum stepover (ap) (ap)

0.248 ˝

6.3 mm

Key range (SW)

0.945 ˝

24 mm

Length from stop (l2)

1.693 ˝

43 mm

Total milling length with insert (l1)

2.598 ˝

66 mm

Cutting diameter (Ds)

1.26 ˝

32 mm

Katalog_CCTMS

16001

Katalog_CCTWS

40600R

Diameter miller body (d1)

1.22 ˝

31 mm
