M406.025.M12.5.04

Material number M406025M12504

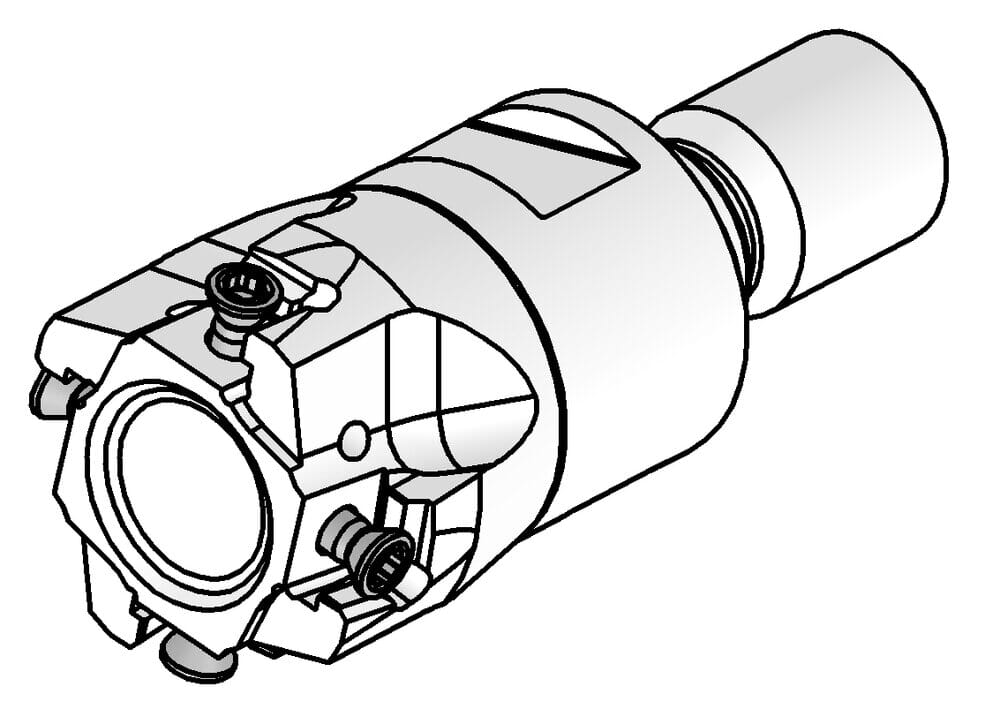

HORN tangential milling cutters type M406 M406.025.M12.5.04 for Milling

Neck diameter on stop (d4)

0.827 ˝

21 mm

tool-application

rotating

Screw thread (d2)

M12

Maximum stepover (ap) (ap)

0.248 ˝

6.3 mm

Key range (SW)

0.669 ˝

17 mm

Length from stop (l2)

1.378 ˝

35 mm

Total milling length with insert (l1)

2.244 ˝

57 mm

Cutting diameter (Ds)

0.984 ˝

25 mm

Katalog_CCTMS

12001

Katalog_CCTWS

40600R

Diameter miller body (d1)

0.945 ˝

24 mm
