M406.016.M08.3.02

Material number M406016M08302

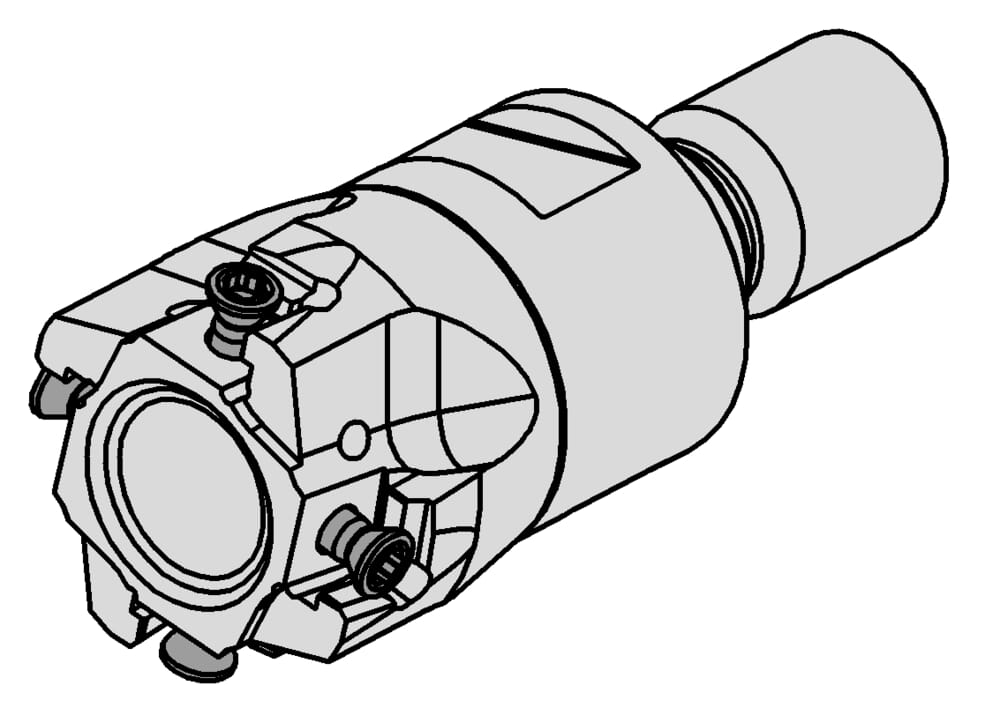

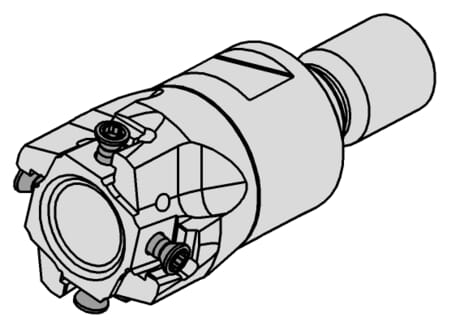

HORN tangential milling cutters type M406 M406.016.M08.3.02 for Milling

Key range (SW)

0.394 ˝

10 mm

tool-application

rotating

Screw thread (d2)

Maximum stepover (ap) (ap)

0.248 ˝

6.3 mm

Neck diameter on stop (d4)

0.512 ˝

13 mm

Length from stop (l2)

0.906 ˝

23 mm

Total milling length with insert (l1)

1.614 ˝

41 mm

Cutting diameter (Ds)

0.63 ˝

16 mm

Katalog_CCTMS

08001

Katalog_CCTWS

40600R

Diameter miller body (d1)

0.591 ˝

15 mm
