M306.1010.03A
Material number M306101003A

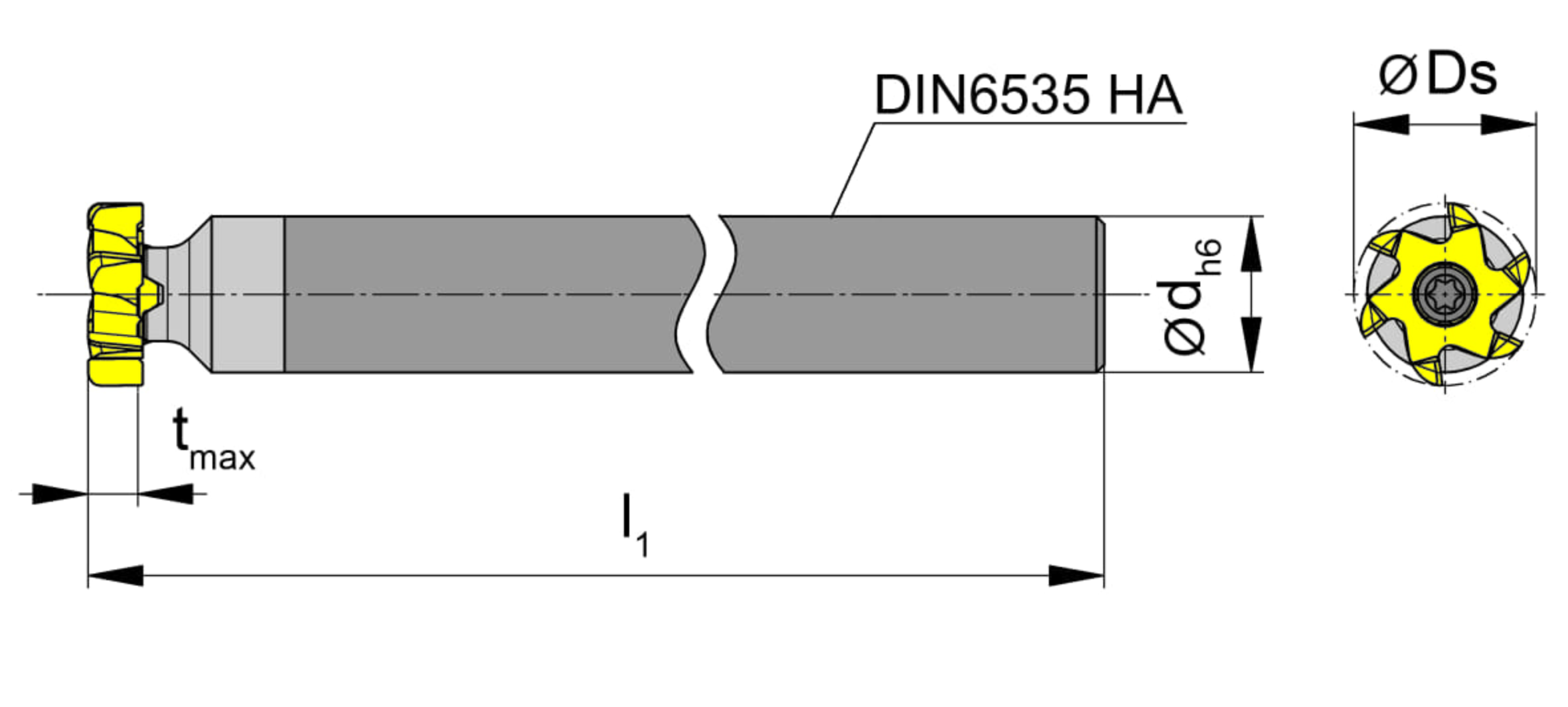

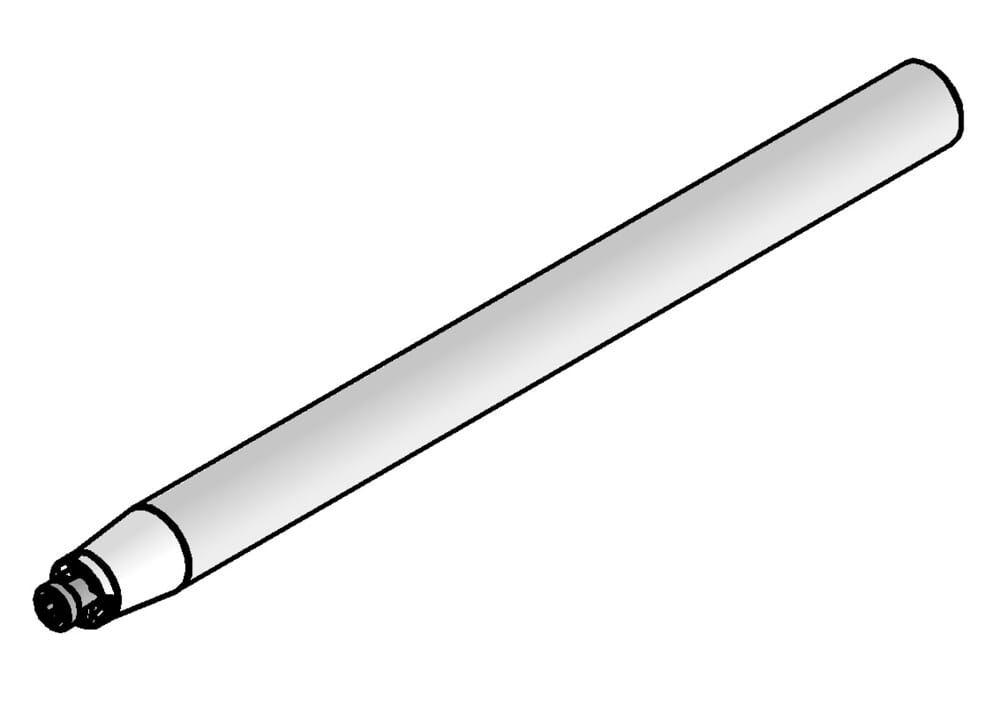

HORN Toolholders M306.1010.03A for Milling
Shank diameter (d)
0.394 ˝
10 mm
Katalog_CCTWS
306060R;306060L
Total length insert (l1)
4.724 ˝
120 mm
tool-application
rotating
| Downloads | |
|---|---|
| M306_1010_03A-DIN.XML | Download |
| M306_1010_03A-DXF.DXF | Download |
| M306_1010_03A-STP.STP | Download |
| M306_1010_03A-ISO.XML | Download |
| Download all files | |
