M275.0048.A22.08

Material number M2750048A2208

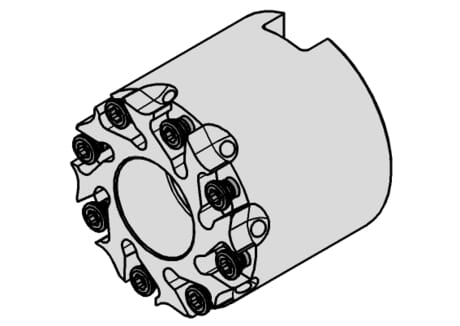

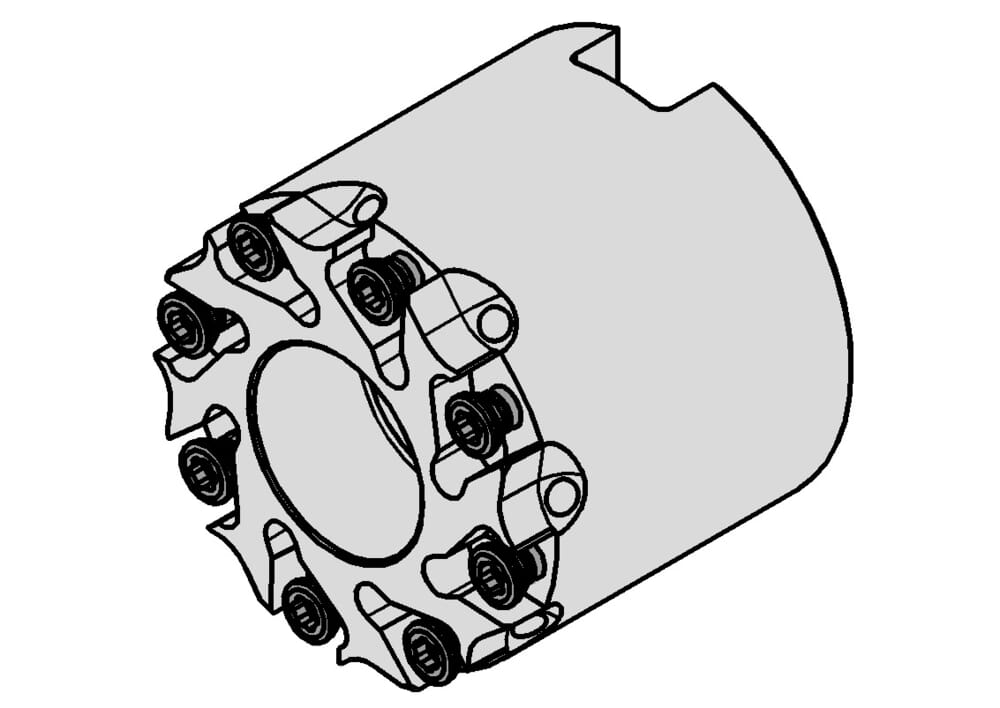

HORN Toolholder M275.0048.A22.08 for Milling

Depth carrier cross groove (C)

0.248 ˝

6.3 mm

Miller length with indexable insert (h)

1.457 ˝

37 mm

Miller length without indexable insert (h2)

1.445 ˝

36.7 mm

Lowering for mounting screw head (d5)

0.728 ˝

18.5 mm

Neck diameter/ Flange diameter miller mandrel (d4)

1.594 ˝

40.5 mm

Mounting hole diameter (d3)

0.866 ˝

22 mm

Mounting hole depth (l1)

0.787 ˝

20 mm

Length from stop to base fastening screw head (l2)

0.972 ˝

24.7 mm

Width carrier cross groove (b)

0.409 ˝

10.4 mm

Diameter of the mandrel (d2)

1.594 ˝

40.5 mm

tool-application

rotating

Cutting diameter (Ds)

1.89 ˝

48 mm

Katalog_CCTWS

275041R;275043R

DA Milling cutter

DA32020A04SA4B
