M101.063.D20.23.2.12B

Material number M101063D2023212B

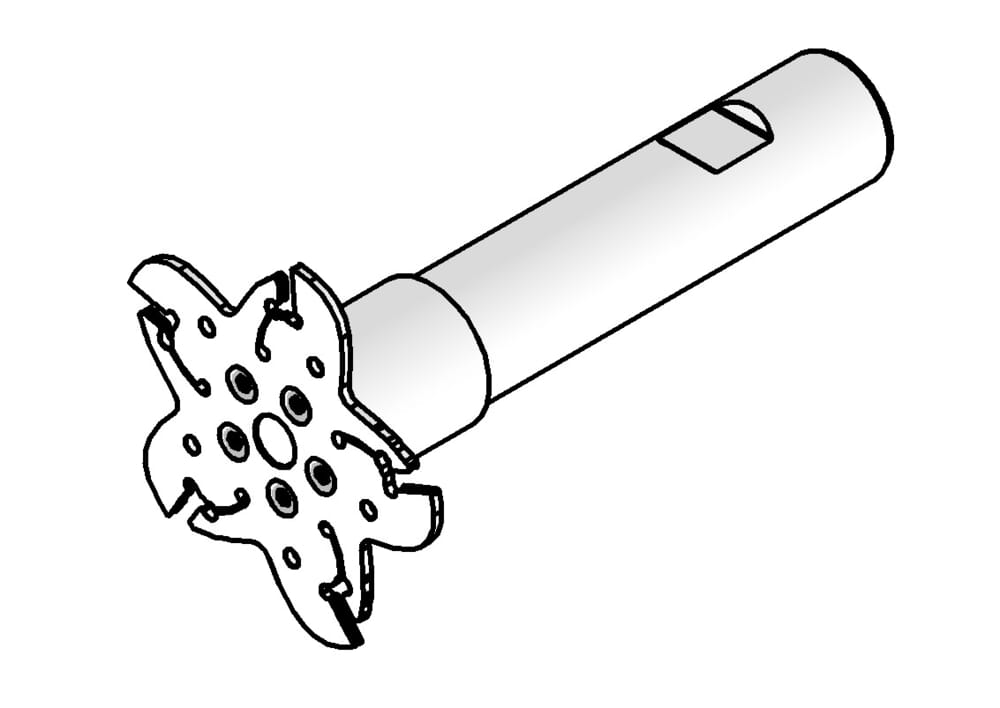

HORN milling cutter M101.063.D20.23.2.12B for Milling

Maximum milling depth/ depth of groove (tmax)

0.768 ˝

19.5 mm

tool-application

rotating

Cutting width minimum (Schneidbreite)

0.047 ˝

1.2 mm

Working length, Neck length, Extension length (l2)

1.181 ˝

30 mm

Total length insert (l1)

4.331 ˝

110 mm

Neck diameter (d1)

0.906 ˝

23 mm

Cutting width maximum (Schneidbreite)

0.047 ˝

1.2 mm

Wide disc cutter without cutting insert (b)

0.037 ˝

0.95 mm

Shank diameter (d)

0.787 ˝

20 mm

Katalog_CCTWS

10112

Cutting diameter (Ds)

2.48 ˝

63 mm

Inserts

DAH25011D04SA4B
