LU116.AC04.01 IG35
Recommended:
Material number LU116AC0401IG35
HORN Insert LU116.AC04.01 IG35 for

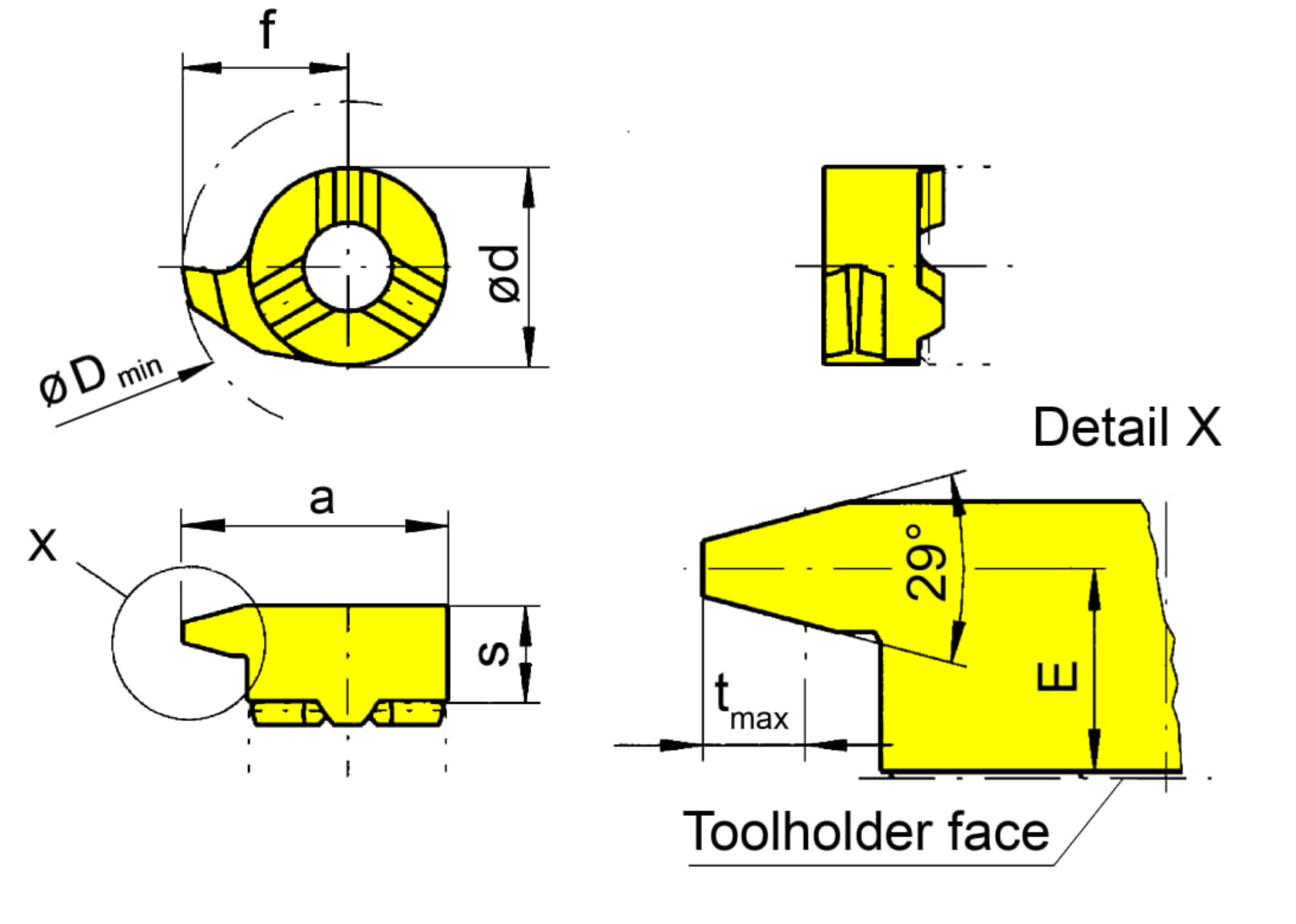

Tooth diameter, head diameter (d)
0.433 ˝
11 mm
Smallest bore diameter (Dmin)
0.63 ˝
16 mm
Cutting insert height, Cutting insert thickness (s)
0.217 ˝
5.5 mm
Setting length (E)
0.13 ˝
3.3 mm
Cutting insert width (a)
0.618 ˝
15.7 mm
Setting range radial (f)
0.402 ˝
10.2 mm
machining-direction-sap
left
Katalog_SSC
116110L
tool-application
static
Maximum depth of groove (tmax)
0.135 ˝
3.43 mm
Threads per inch (TPI)
4
| Downloads | |
|---|---|
| LU116AC0401.STP | Download |
| Download all files | |
