LU110.4794.1.8 IG35
Recommended:
Also suitable for:
Material number LU110479418IG35

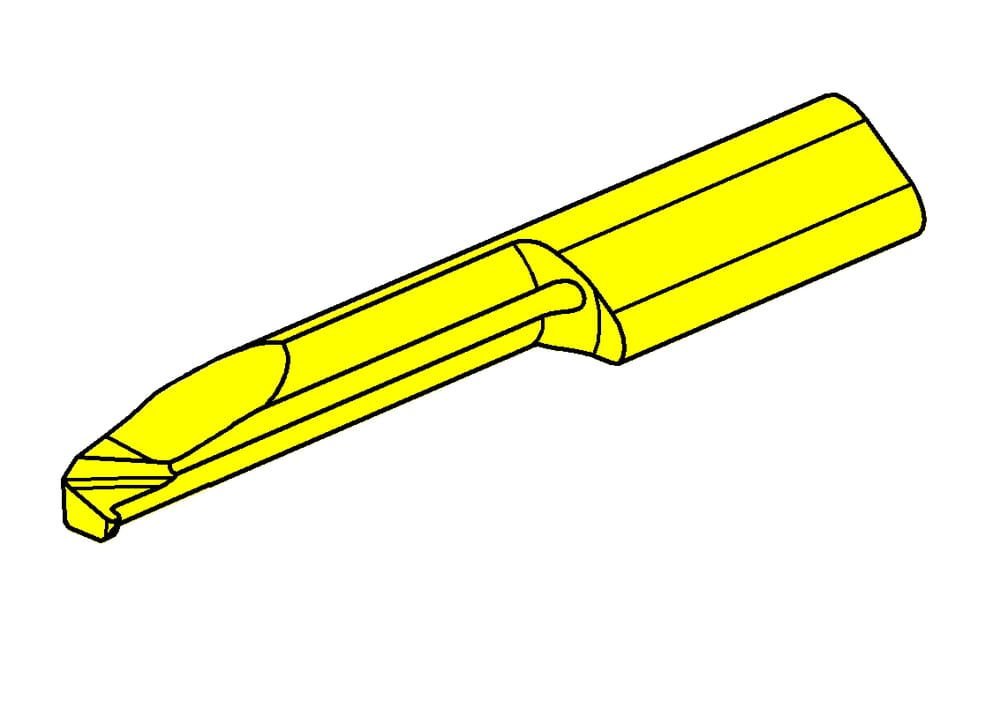

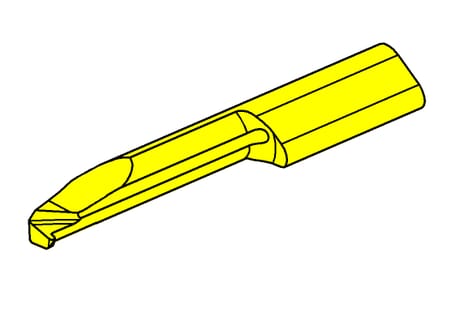

HORN Insert LU110.4794.1.8 IG35 for Turning

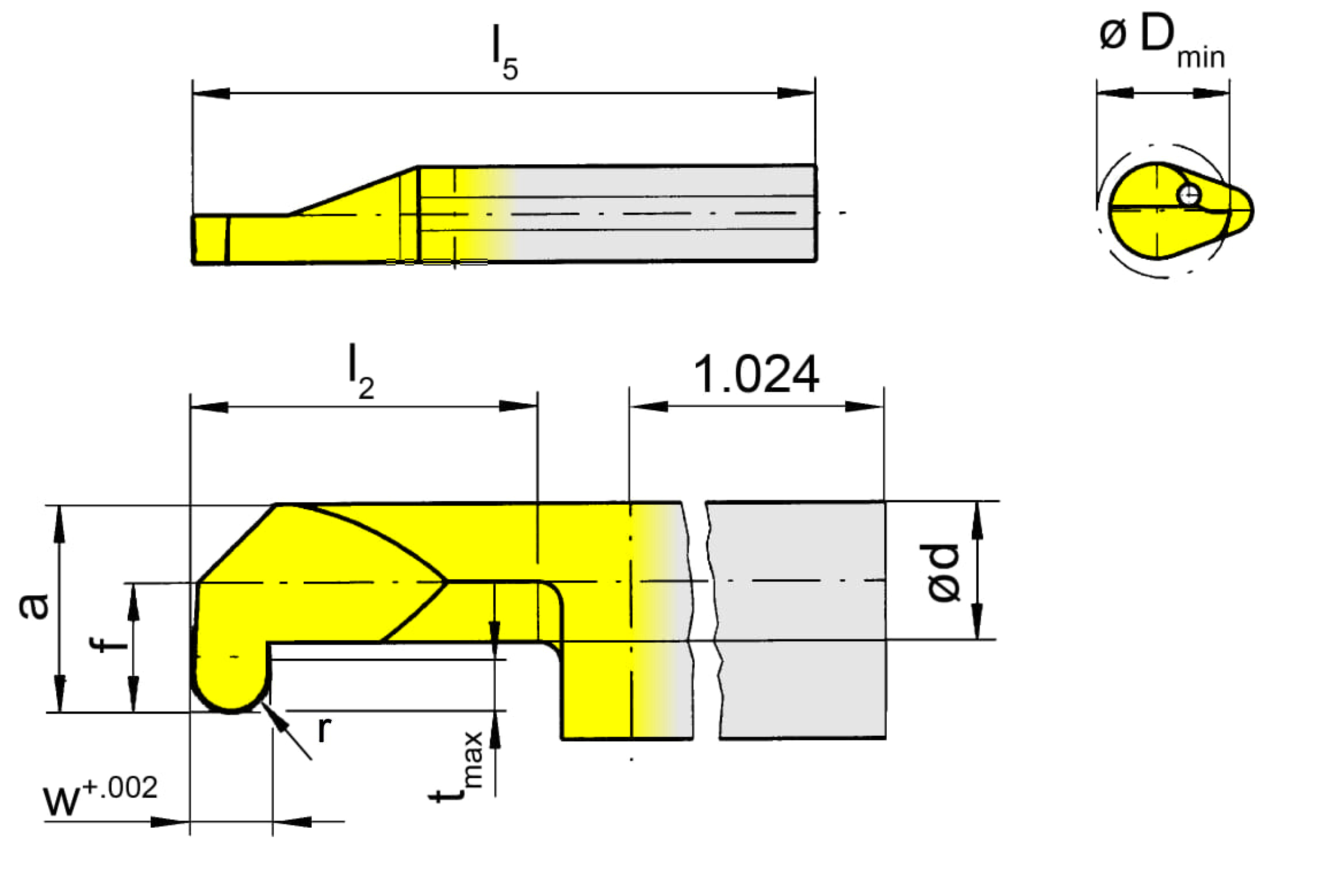

Total length (l5)
1.575 ˝
40 mm
Width of groove (w)
0.094 ˝
2.39 mm
Neck diameter (d)
0.165 ˝
4.2 mm
Setting range radial (f)
0.157 ˝
4 mm
Smallest bore diameter (Dmin)
0.315 ˝
8 mm
Katalog_SSC
110260
machining-direction-sap
left
unit-system-sap
I
tool-group-detail
U110
tool-application
static
Full radius (r)
0.047 ˝
1.19 mm
Maximum depth of groove (tmax)
0.11 ˝
2.8 mm
Head size (a)
0.291 ˝
7.4 mm
Neck length (l2)
0.787 ˝
20 mm
