LU108.0078.00 IG35
Recommended:
Material number LU108007800IG35

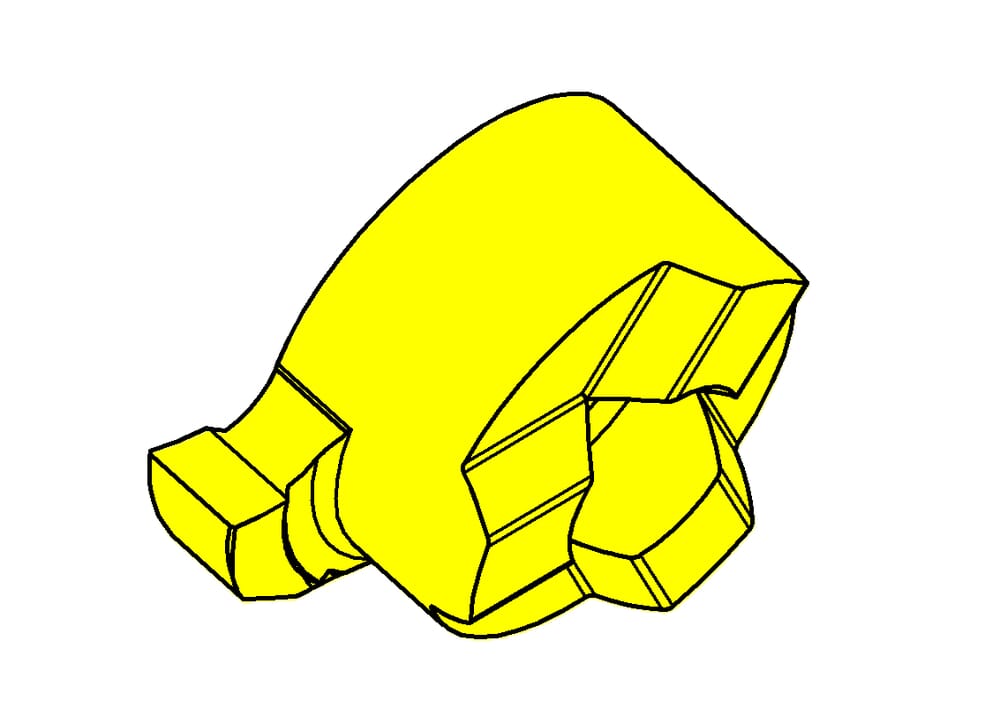

HORN Insert LU108.0078.00 IG35 for Turning
Cutting insert height, Cutting insert thickness (s)
0.126 ˝
3.2 mm
tooth-diameter-met
0.236 ˝
6 mm
smallest-bore-diameter-met
0.315 ˝
8 mm
Width of groove (mm) (w)
0.078 ˝
1.995 mm
milling-depth-groove-depth-max-imp
0.039 ˝
1 mm
cutting-insert-thickness-imp
0.126 ˝
3.2 mm
Setting range radial (f)
0.189 ˝
4.8 mm
cutting-insert-width-imp
0.307 ˝
7.8 mm
machining-direction-sap
left
unit-system-sap
I
cutting
1
us-cutting
Yes
Maximum depth of groove (tmax)
0.039 ˝
1 mm
cutting-edge-diameter-met
0.378 ˝
9.6 mm
Number of teeth (Z)
1 St.
head-size-met
0.307 ˝
7.8 mm
tool-application
static
Katalog_SSC
108060L
| Downloads | |
|---|---|
| LU108007800.DXF | Download |
| LU108007800_20230113_111639520.STP | Download |
| Download all files | |
