LU105.4604.3.7 IG35
Recommended:
Also suitable for:
Material number LU105460437IG35
HORN Insert LU105.4604.3.7 IG35 for Turning

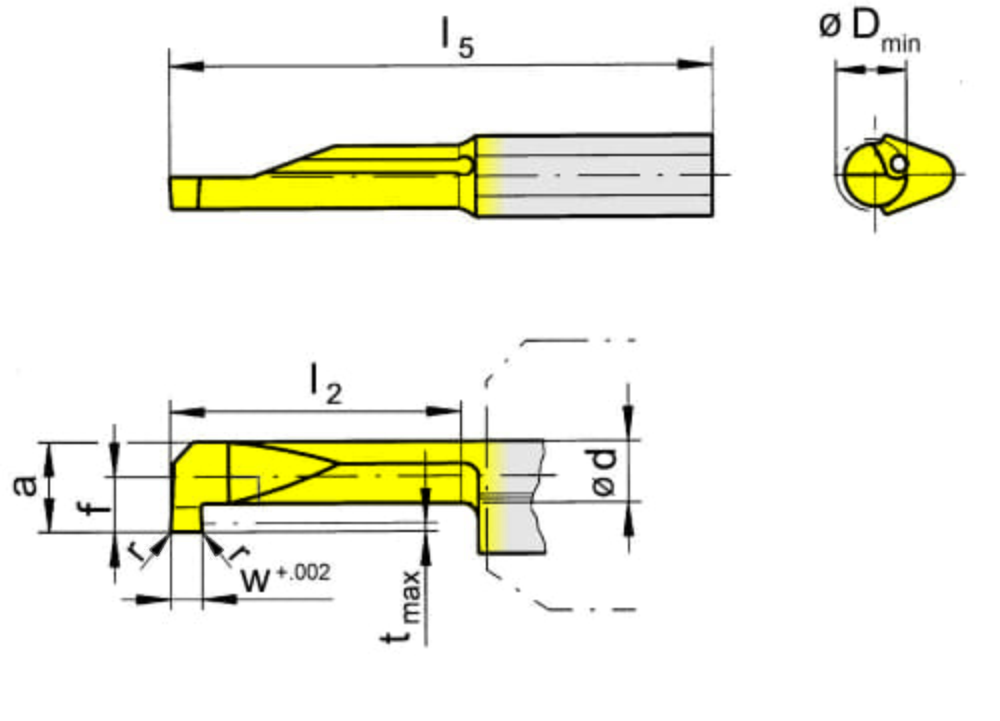

Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Setting range radial (f)
0.157 ˝
4 mm
Corner radius (r)
0.004 ˝
0.1 mm
Total length (l5)
1.378 ˝
35 mm
Width of groove (mm) (w)
0.046 ˝
1.17 mm
machining-direction-sap
left
unit-system-sap
I
us-cutting
Yes
Head size (a)
0.252 ˝
6.4 mm
Neck length (l2)
0.787 ˝
20 mm
adjustment-dimension-met
0.157 ˝
4 mm
Maximum depth of groove (tmax)
0.098 ˝
2.5 mm
width-blank-met
0.276 ˝
7 mm
tool-application
static
Katalog_SSC
105125
| Downloads | |
|---|---|
| LU105460437.STP | Download |
| Download all files | |
