LS100.0530.E2 TF45
Recommended:
Also suitable for:
Material number LS1000530E2TF45

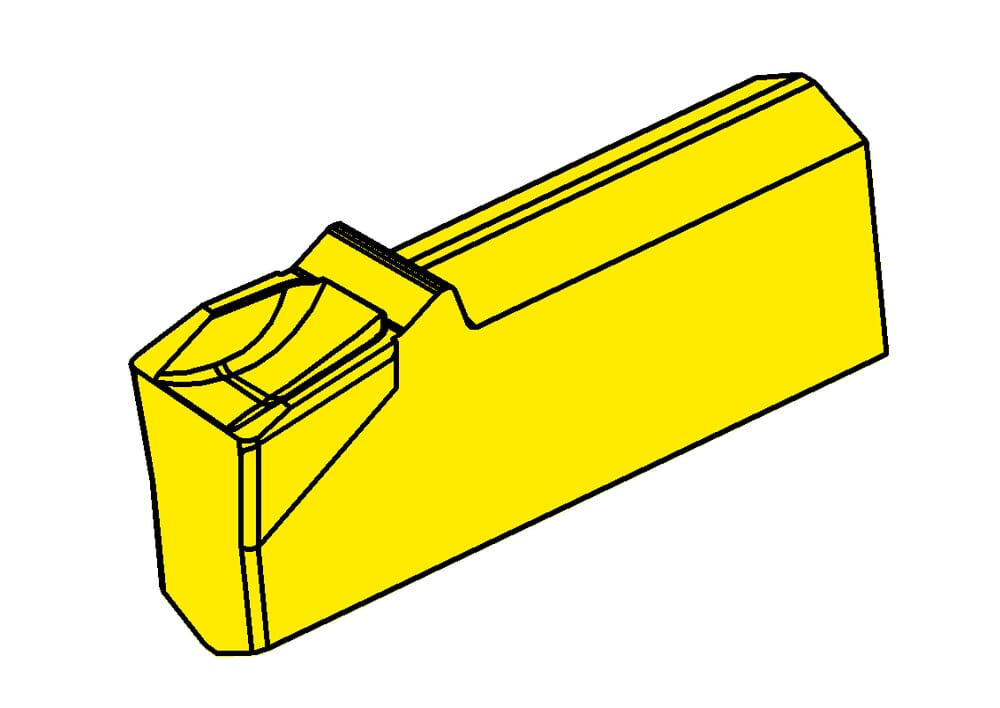

HORN Inserts LS100.0530.E2 TF45 for Turning
us-cutting
Yes
tool-application
static
machining-direction-sap
left
Corner radius (mm) (r)
0.008 ˝
0.2 mm
Parting-off chamfer (α)
5 °
Width of groove (mm) (w)
0.118 ˝
3 mm
Katalog_SSC
100038
| Downloads | |
|---|---|
| LS100_0530_E2_TF45-ISO.XML | Download |
| LS100_0530_E2_TF45-DIN.XML | Download |
| LS100_0530_E2_TF45-DXF.DXF | Download |
| LS100_0530_E2_TF45-STP.STP | Download |
| Download all files | |
