LA105.1025.12.2.2 EG35
Recommended:
Material number LA10510251222EG35

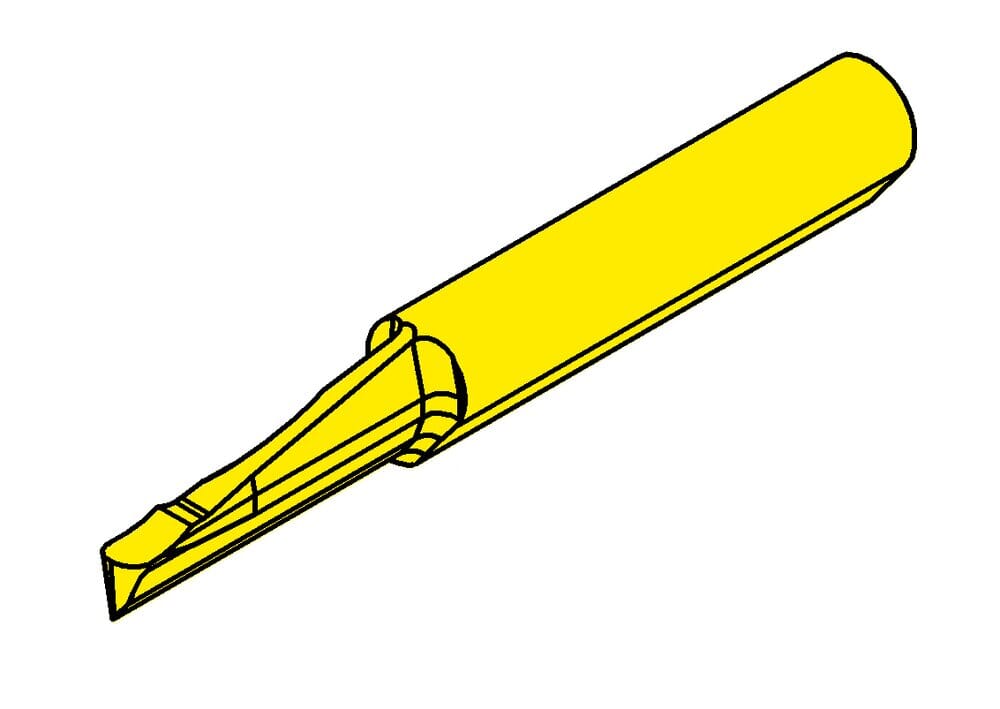

HORN Insert LA105.1025.12.2.2 EG35 for Turning
Width of groove (w)
0.098 ˝
2.5 mm
tool-application
static
machining-direction-sap
left
Total length (l5)
1.575 ˝
40 mm
Adjustment dimension cutting center (f)
0.063 ˝
1.6 mm
Katalog_SSC
105225
Full radius (r)
0.049 ˝
1.25 mm
Smallest axial bore diameter (Da min)
0.394 ˝
10 mm
Maximum starting outside diameter (Da max)
1.772
45 mm
Maximum depth of groove (tmax a)
0.591 ˝
15 mm
| Downloads | |
|---|---|
| LA105_1025_12_2_2_EG35-DXF.DXF | Download |
| LA105_1025_12_2_2_EG35-STP.STP | Download |
| LA105_1025_12_2_2_EG35-ISO.XML | Download |
| LA105_1025_12_2_2_EG35-DIN.XML | Download |
| Download all files | |
