L264.1520.10 MG12
Recommended:
Material number L264152010MG12

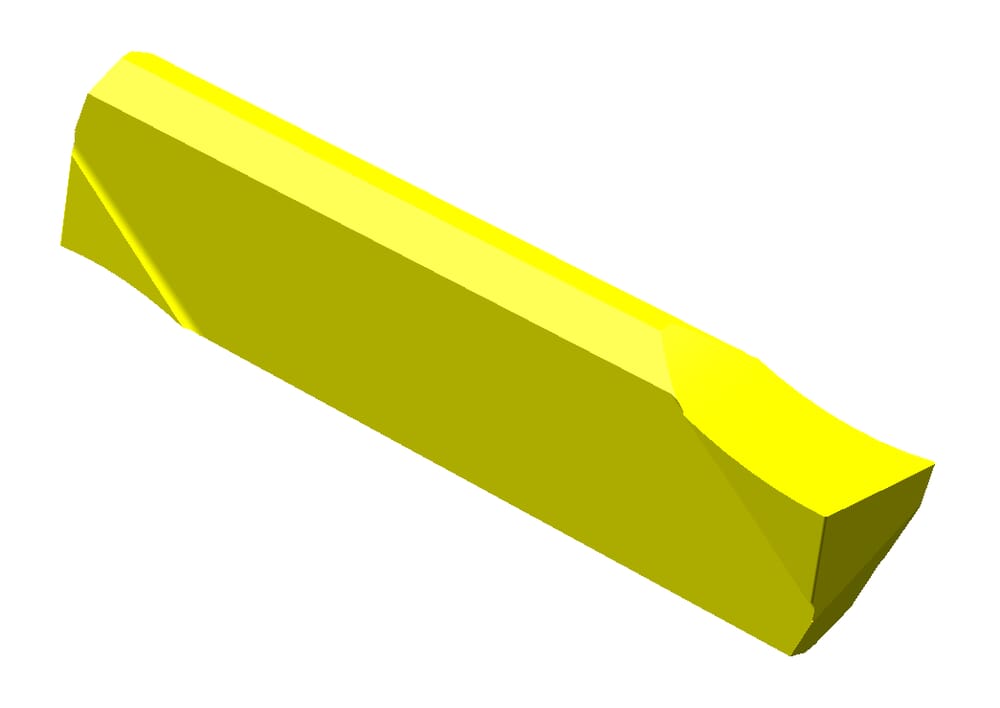

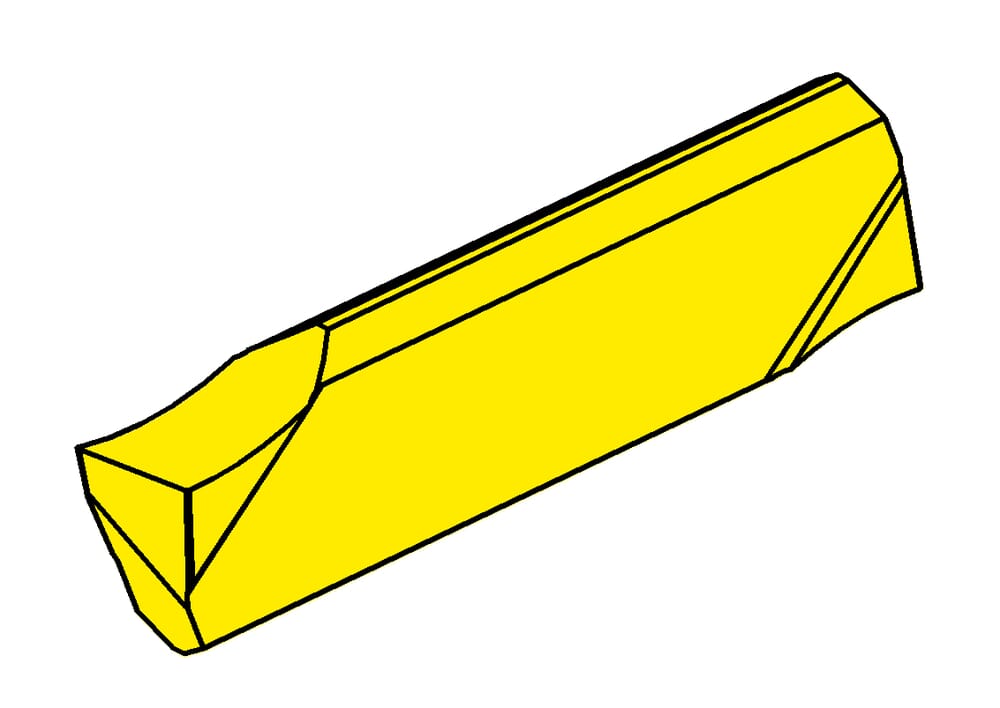

HORN Inserts L264.1520.10 MG12 for Turning
us-cutting
Yes
tool-application
static
machining-direction-sap
left
Corner radius (mm) (r)
0.002 ˝
0.05 mm
Parting-off chamfer (α)
15 °
Width of groove (mm) (w)
0.079 ˝
2 mm
Katalog_SSC
26402
| Downloads | |
|---|---|
| L264_1520_10_MG12-DXF.DXF | Download |
| L264_1520_10_MG12-STP.STP | Download |
| L264_1520_10_MG12-ISO.XML | Download |
| L264_1520_10_MG12-DIN.XML | Download |
| Download all files | |
