L116.0815.45 EG55

Recommended:

Also suitable for:

Material number L116081545EG55

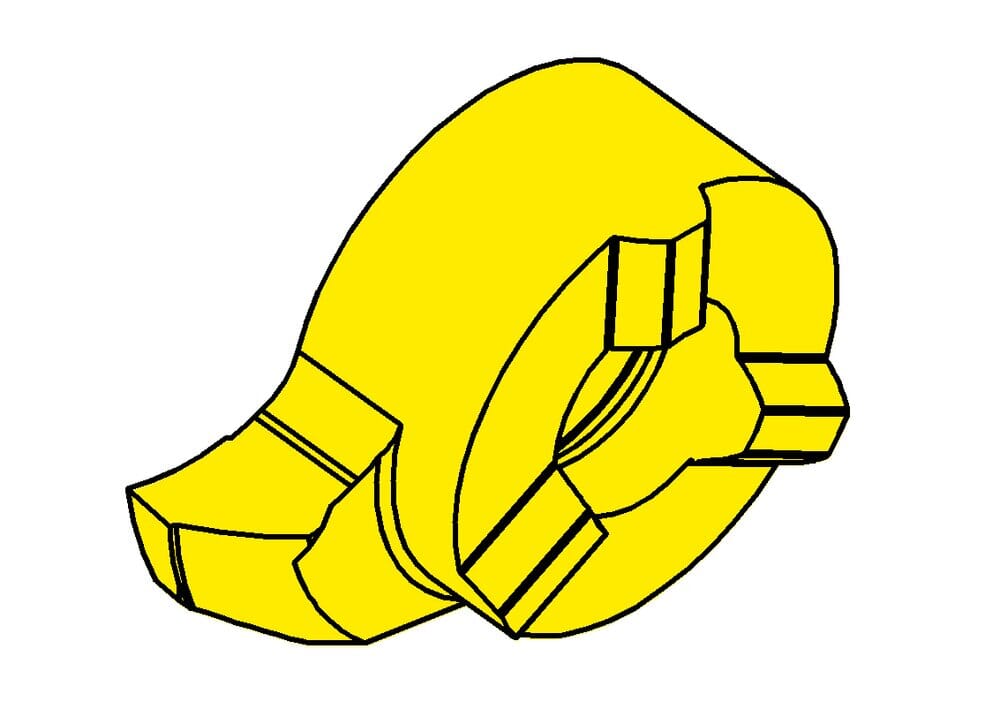

HORN Insert L116.0815.45 EG55 for Turning

Setting range radial (f)

0.402 ˝

10.2 mm

us-cutting

Yes

machining-direction-sap

left

tool-application

static

Smallest bore diameter (Dmin)

0.63 ˝

16 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Tooth diameter, head diameter (d)

0.433 ˝

11 mm

Head size (a)

0.618 ˝

15.7 mm

Width of groove (mm) (w)

0.059 ˝

1.5 mm

Katalog_SSC

116110L

Groove depth without groove outer edge chamfer (t1)

0.008 ˝

0.2 mm

Maximum depth of groove (tmax)

0.059 ˝

1.5 mm
