L116.0815.02 TN35

Recommended:

Also suitable for:

Material number L116081502TN35

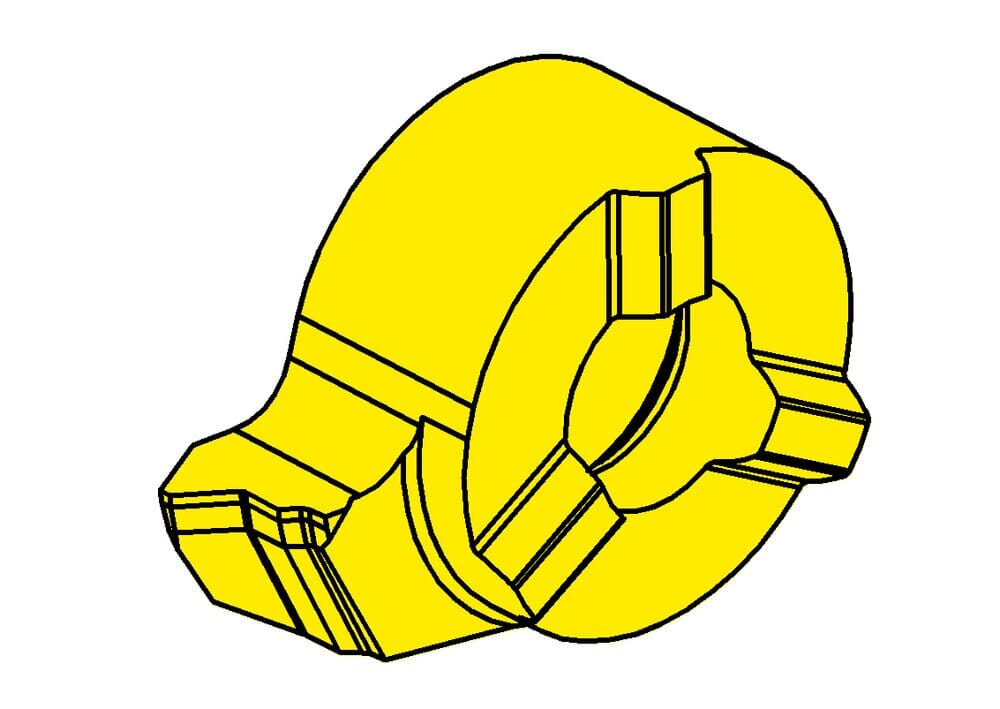

HORN Inserts L116.0815.02 TN35 for Gewinden

Cutting insert height, Cutting insert thickness (s)

0.217 ˝

5.5 mm

cutting

tool-application

static

machining-direction-sap

left

Pitch (P)

0.059 ˝

1.5 mm

Smallest bore diameter (Dmin)

0.63 ˝

16 mm

Setting length (E)

0.177 ˝

4.5 mm

Tooth diameter, head diameter (d)

0.433 ˝

11 mm

Cutting insert width (a)

0.618 ˝

15.7 mm

Setting range radial (f)

0.402 ˝

10.2 mm

Katalog_SSC

116110L
