L116.0110.00 TH35

Recommended:

Also suitable for:

Material number L116011000TH35

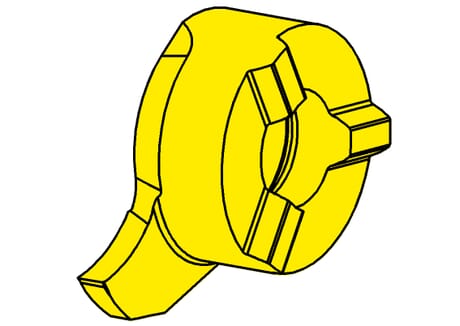

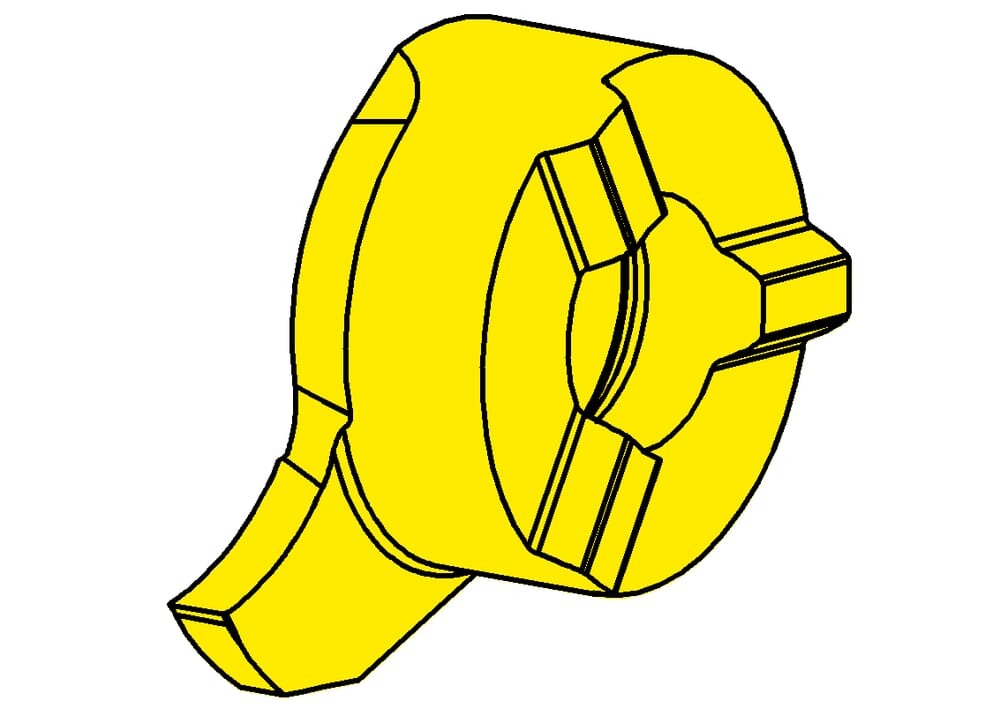

HORN insert L116.0110.00 TH35 for Milling and Turning

Note: Widths for circlip grooves DIN 471/472.

tool-application

static

Tooth diameter, head diameter (d)

0.433 ˝

11 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Smallest bore diameter (Dmin)

0.63 ˝

16 mm

machining-direction-sap

left

Setting range radial (f)

0.402 ˝

10.2 mm

us-cutting

Yes

Width of groove (w)

0.047 ˝

1.19 mm

Cutting diameter (Ds)

0.803 ˝

20.4 mm

Head size (a)

0.618 ˝

15.7 mm

Maximum depth of groove (tmax)

0.169 ˝

4.3 mm

Katalog_SSC

116110L

Nominal range (Nw)

0.043 ˝

1.1 mm
