L116.0080.00 TN35

Recommended:

Also suitable for:

Material number L116008000TN35

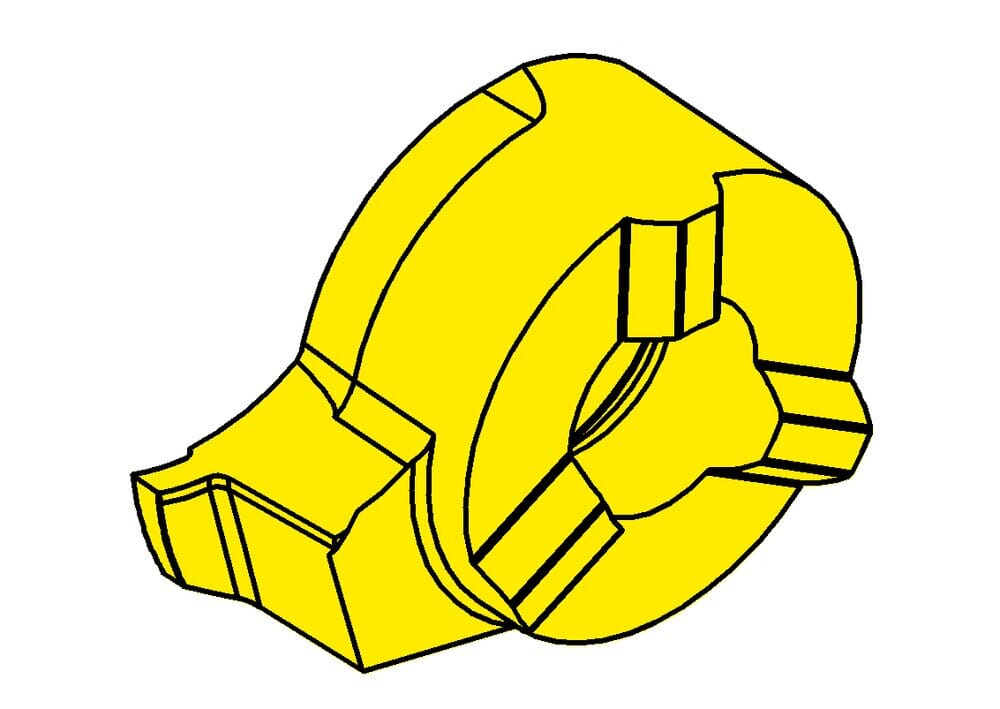

HORN Inserts L116.0080.00 TN35 for Turning

Note: Widths for circlip grooves DIN 471/472. Not face cutting, limited depth of cut.

tool-application

static

Tooth diameter, head diameter (d)

0.433 ˝

11 mm

Cutting insert height, Cutting insert thickness (s)

0.217 ˝

5.5 mm

Smallest bore diameter (Dmin)

0.63 ˝

16 mm

machining-direction-sap

left

Setting range radial (f)

0.402 ˝

10.2 mm

us-cutting

Yes

Width of groove (w)

0.033 ˝

0.84 mm

Maximum depth of groove (tmax)

0.051 ˝

1.3 mm

Head size (a)

0.618 ˝

15.7 mm

Distance dimension cutting edge (s1)

5.3 mm

Distance dimension cutting edge (s1)

0.209 ˝

Katalog_SSC

116110L

Nominal range (Nw)

0.031 ˝

0.8 mm
