L116.0011.22 TH35

Recommended:

Also suitable for:

Material number L116001122TH35

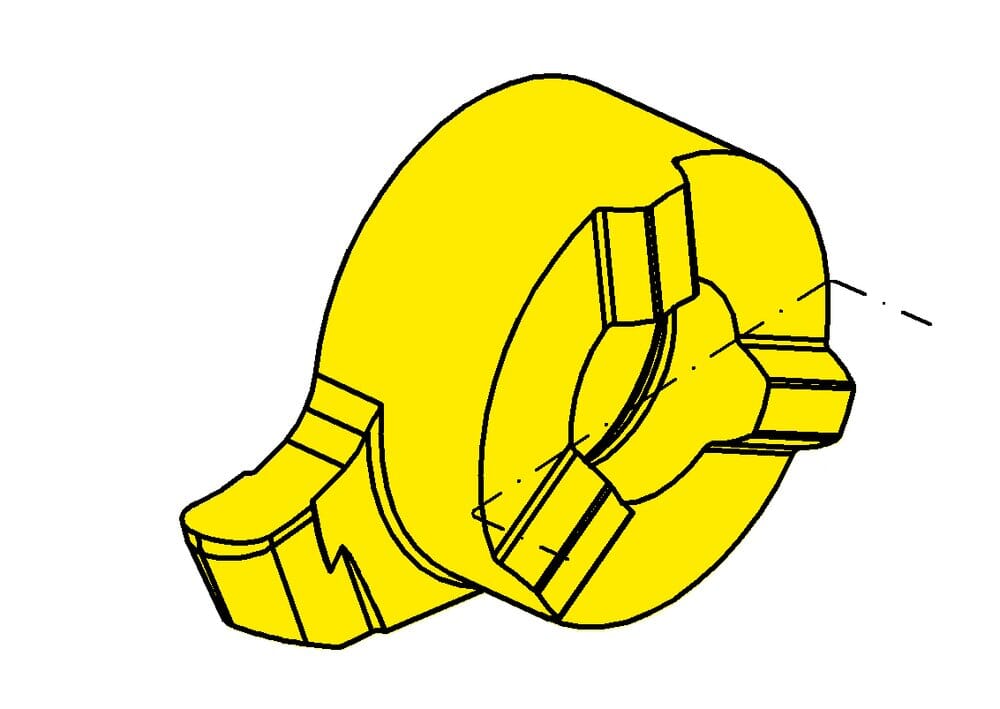

HORN Inserts L116.0011.22 TH35 for Milling and Turning

machining-direction-sap

left

Setting range radial (f)

0.402 ˝

10.2 mm

Tooth diameter, head diameter (d)

0.433 ˝

11 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Smallest bore diameter (Dmin)

0.63 ˝

16 mm

Width of groove (mm) (w)

0.087 ˝

2.2 mm

tool-application

static

cutting

Cutting diameter (Ds)

0.803 ˝

20.4 mm

Radius, full-radius (r)

0.043 ˝

1.1 mm

Katalog_SSC

116110L

Maximum depth of groove (tmax)

0.169 ˝

4.3 mm

Head size (a)

0.618 ˝

15.7 mm
