L114.4710.02 TN35

Recommended:

Also suitable for:

Material number L114471002TN35

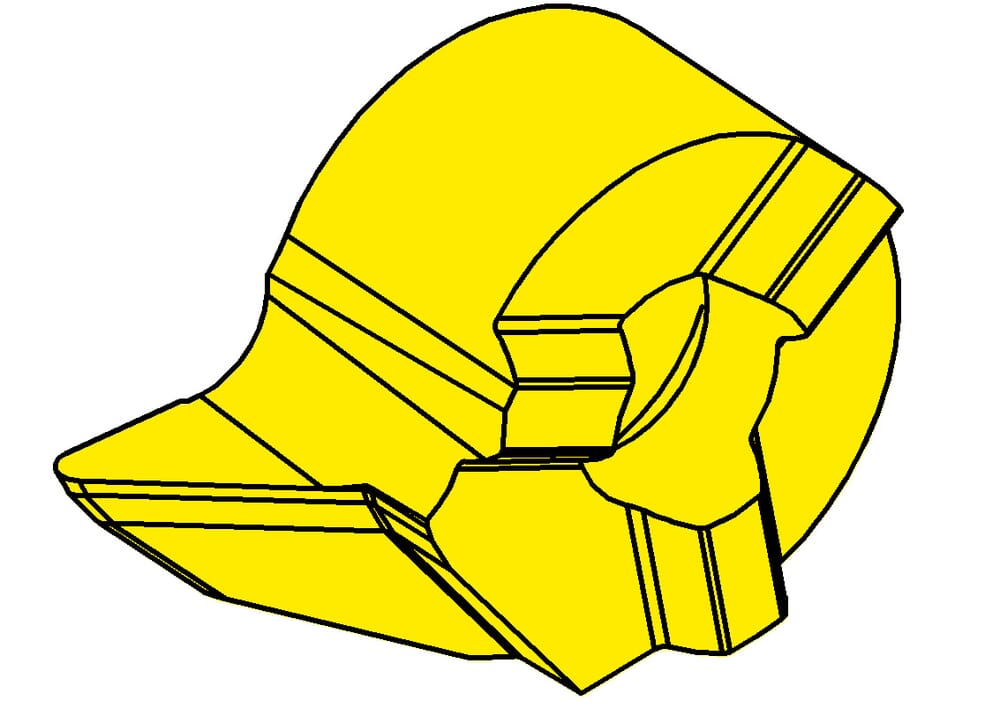

HORN Inserts L114.4710.02 TN35 for Turning

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.63 ˝

16 mm

Top radius (r)

0.008 ˝

0.2 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Setting range radial (f)

0.433 ˝

11 mm

Katalog_SSC

114090L

Maximum depth of groove (tmax)

0.197 ˝

5 mm

Head size (a)

0.61 ˝

15.5 mm
