L114.1890.02 TH35

Recommended:

Also suitable for:

Material number L114189002TH35

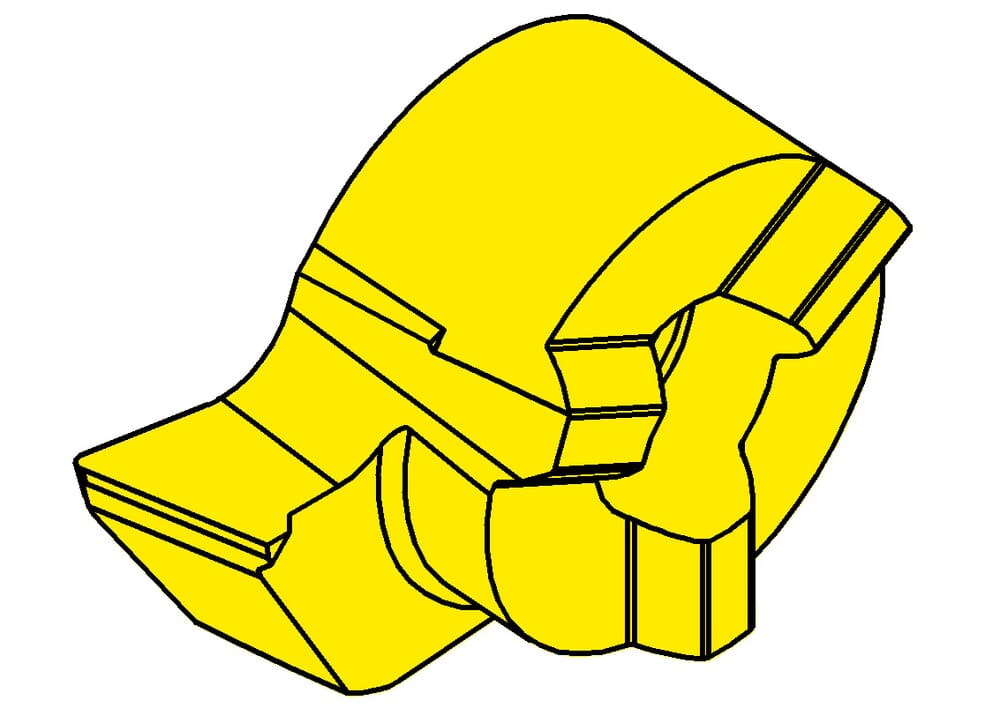

HORN insert L114.1890.02 TH35 for Turning

Smallest bore diameter (Dmin)

0.543 ˝

13.8 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Top radius (r)

0.008 ˝

0.2 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Setting range radial (f)

0.343 ˝

8.7 mm

Katalog_SSC

114090L

Head size (a)

0.52 ˝

13.2 mm
