L114.1420.10 TN35
Material number L114142010TN35

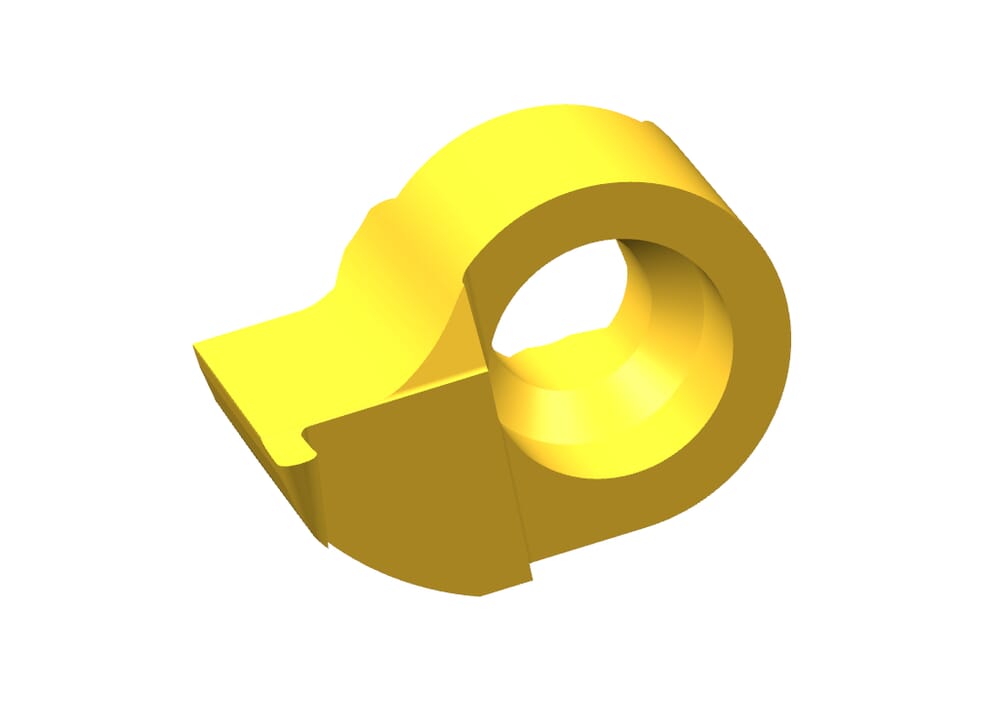

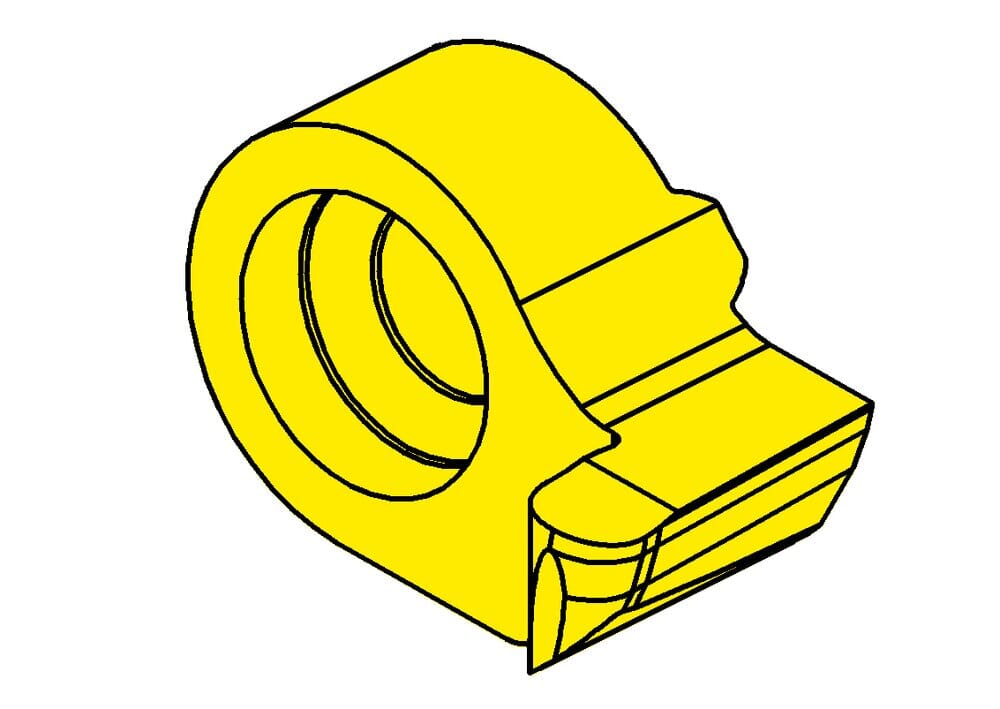

HORN Inserts L114.1420.10 TN35 for Turning
Width of groove (w)
0.079 ˝
2 mm
tool-application
static
machining-direction-sap
left
Cutting insert height, Cutting insert thickness (s)
0.327 ˝
8.3 mm
Setting range radial (f)
0.354 ˝
9 mm
Head size (a)
0.531 ˝
13.5 mm
Katalog_SSC
114090L
Full radius (r)
0.039 ˝
1 mm
Smallest axial bore diameter (Da min)
0.551 ˝
14 mm
Maximum depth of groove (tmax a)
0.118 ˝
3 mm
| Downloads | |
|---|---|
| L114142010.DXF | Download |
| L114142010_20230112_191552809.STP | Download |
| Download all files | |
