L114.1215.00 EG55

Recommended:

Also suitable for:

Material number L114121500EG55

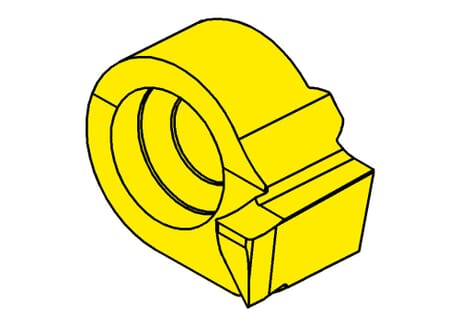

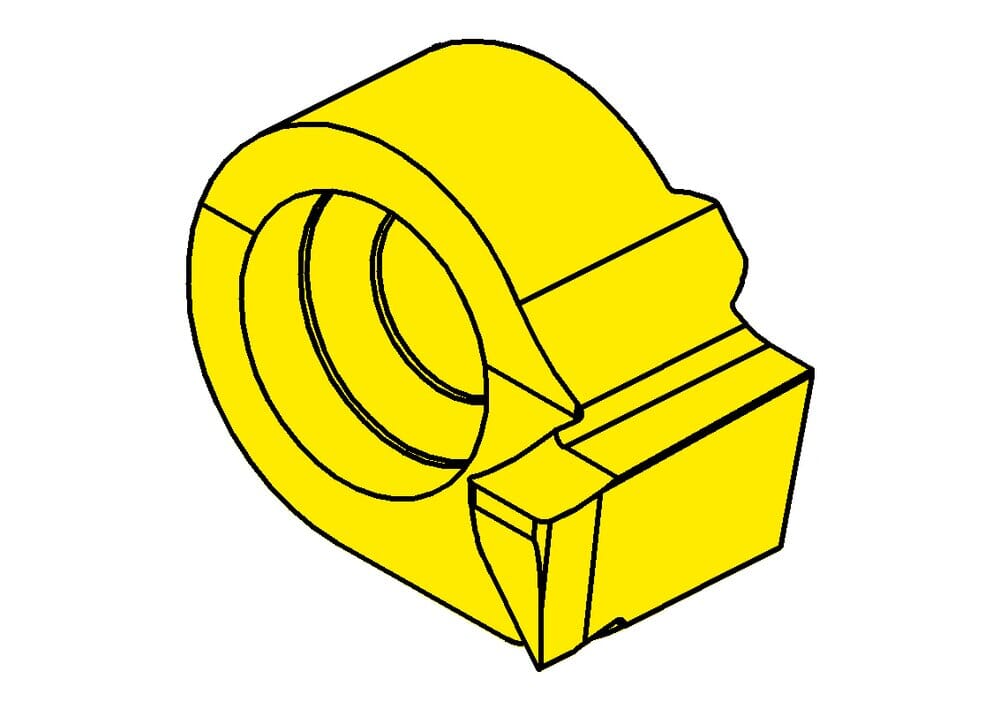

HORN Insert L114.1215.00 EG55 for Turning

Cutting insert height, Cutting insert thickness (s)

0.327 ˝

8.3 mm

machining-direction-sap

left

tool-application

static

Setting range radial (f)

0.295 ˝

7.5 mm

Width of groove (mm) (w)

0.059 ˝

1.5 mm

Head size (a)

0.472 ˝

12 mm

Corner radius (r)

0.008 ˝

0.2 mm

Katalog_SSC

114090L

Smallest axial bore diameter (Da min)

0.472 ˝

12 mm

Maximum depth of groove (tmax a)

0.098 ˝

2.5 mm
