L114.1020.01 TN35

Recommended:

Also suitable for:

Material number L114102001TN35

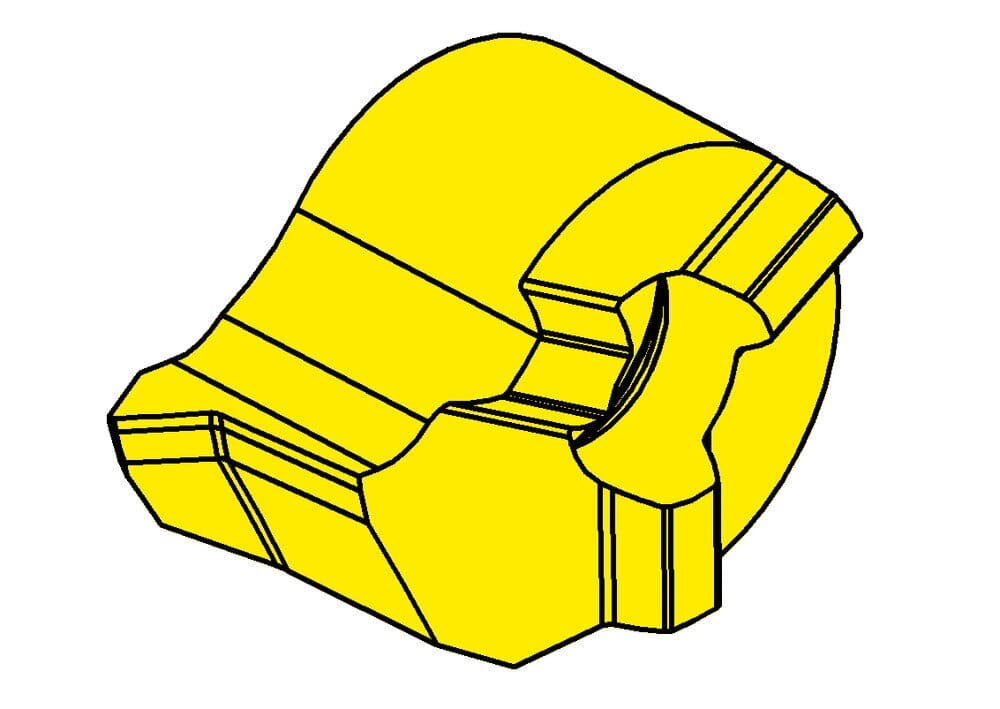

HORN Inserts L114.1020.01 TN35 for Gewinden

Pitch (P)

0.079 ˝

2 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Maximum pitch (Pmax)

0.079 ˝

2 mm

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

Cutting insert height, Cutting insert thickness (s)

0.217 ˝

5.5 mm

Setting length (E)

0.165 ˝

4.2 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Cutting insert width (a)

0.531 ˝

13.5 mm

Setting range radial (f)

0.354 ˝

9 mm

Katalog_SSC

114090L
