L114.0815.45 EG55

Recommended:

Also suitable for:

Material number L114081545EG55

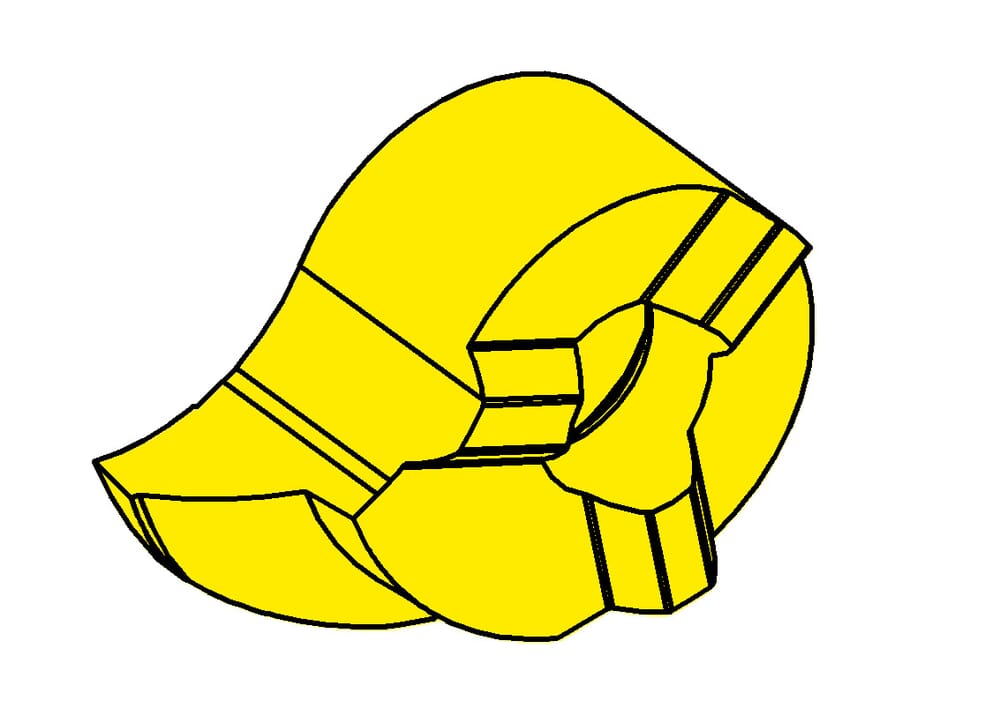

HORN Insert L114.0815.45 EG55 for Turning

Width of groove (mm) (w)

0.059 ˝

1.5 mm

machining-direction-sap

left

tool-application

static

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Setting range radial (f)

0.354 ˝

9 mm

Head size (a)

0.531 ˝

13.5 mm

Katalog_SSC

114090L

Groove depth without groove outer edge chamfer (t1)

0.008 ˝

0.2 mm

Maximum depth of groove (tmax)

0.059 ˝

1.5 mm
