L114.0400.1.02 EG55

Recommended:

Also suitable for:

Material number L1140400102EG55

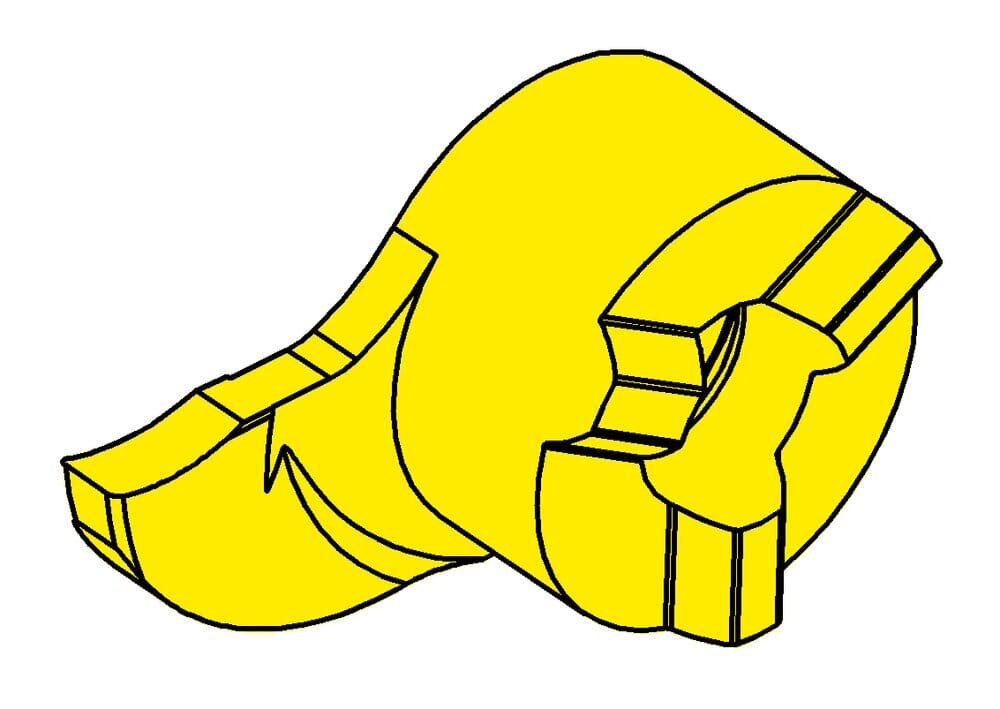

HORN Insert L114.0400.1.02 EG55 for Turning

Setting range radial (f)

0.445 ˝

11.3 mm

us-cutting

Yes

machining-direction-sap

left

tool-application

static

Smallest bore diameter (Dmin)

0.65 ˝

16.5 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Width of groove (mm) (w)

0.157 ˝

4 mm

Corner radius (r)

0.008 ˝

0.2 mm

Maximum depth of groove (tmax)

0.256 ˝

6.5 mm

Head size (a)

0.622 ˝

15.8 mm

Katalog_SSC

114090L
