L114.0250.1.02 TN35

Recommended:

Also suitable for:

Material number L1140250102TN35

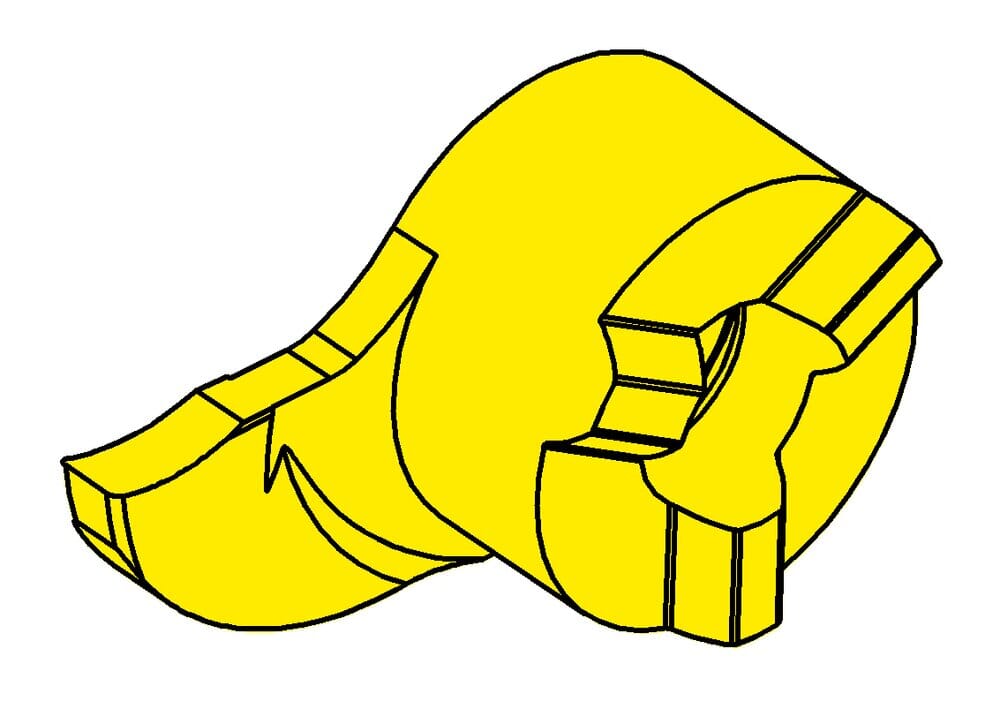

HORN Inserts L114.0250.1.02 TN35 for Turning

Setting range radial (f)

0.445 ˝

11.3 mm

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.65 ˝

16.5 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Head size (a)

0.622 ˝

15.8 mm

Width of groove (mm) (w)

0.098 ˝

2.5 mm

Corner radius (r)

0.008 ˝

0.2 mm

Katalog_SSC

114090L

Maximum depth of groove (tmax)

0.256 ˝

6.5 mm
