L114.0250.00 TN35

Recommended:

Also suitable for:

Material number L114025000TN35

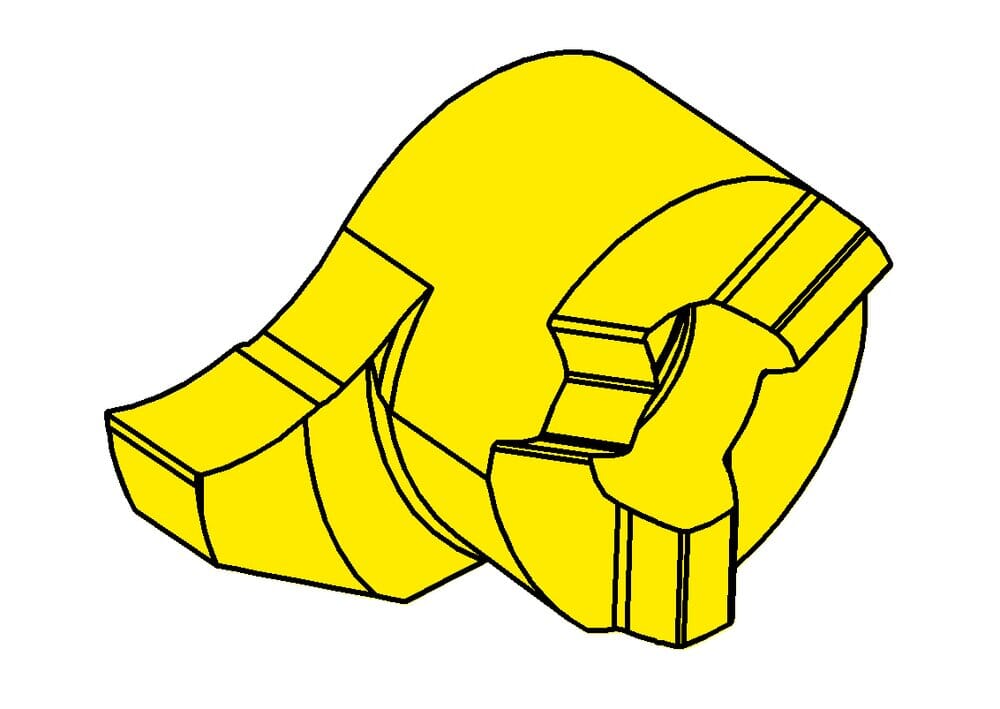

HORN Inserts L114.0250.00 TN35 for Turning

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

Head size (a)

0.531 ˝

13.5 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Setting range radial (f)

0.354 ˝

9 mm

Width of groove (mm) (w)

0.098 ˝

2.5 mm

Katalog_SSC

114090L

Maximum depth of groove (tmax)

0.157 ˝

4 mm
