L114.0205.01 EG55

Recommended:

Also suitable for:

Material number L114020501EG55

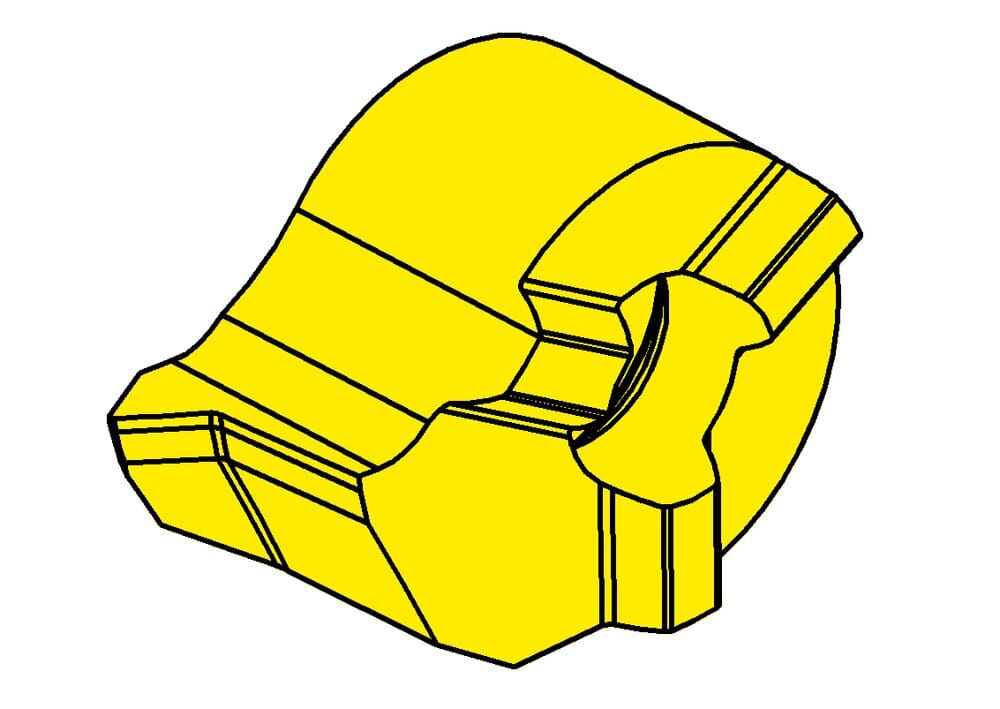

HORN Insert L114.0205.01 EG55 for Gewinden

Setting length (E)

0.189 ˝

4.8 mm

cutting

machining-direction-sap

left

tool-application

static

Maximum pitch (Pmax)

0.03 ˝

0.75 mm

Pitch (P)

0.02 ˝

0.5 mm

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

Cutting insert height, Cutting insert thickness (s)

0.217 ˝

5.5 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Cutting insert width (a)

0.354 ˝

9 mm

Setting range radial (f)

0.354 ˝

9 mm

Katalog_SSC

114090L

insert

S11710080314A1AN45
