L114.0200.02 TI25

Recommended:

Also suitable for:

Material number L114020002TI25

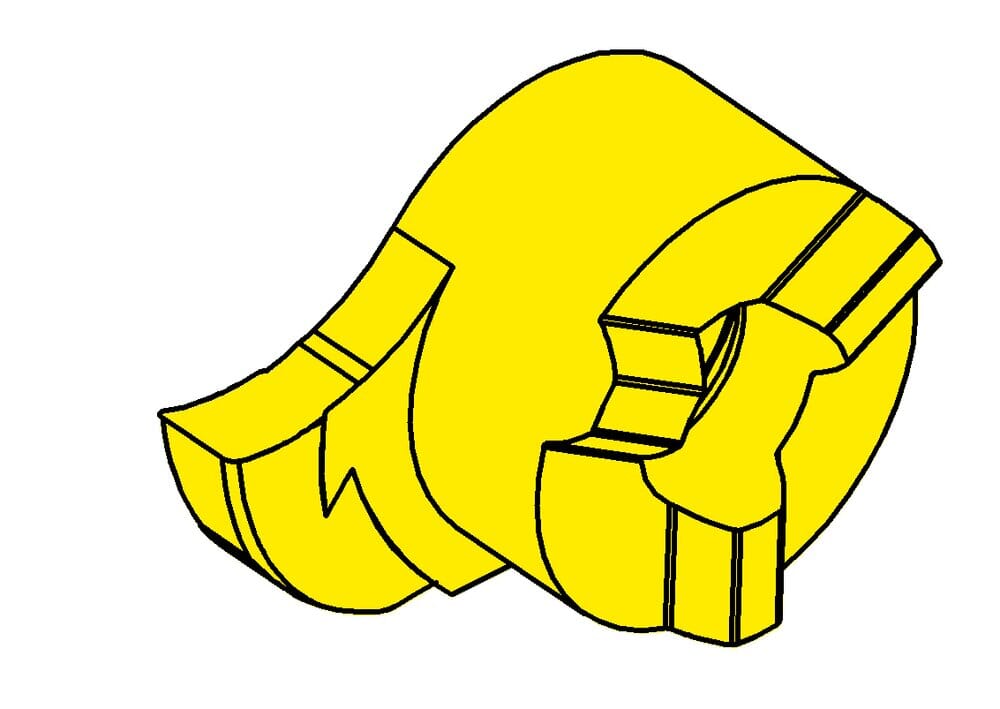

HORN insert L114.0200.02 TI25 for Turning

Note: These inserts are optimized for finishing passes.

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

machining-direction-sap

left

tool-application

static

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

cutting

us-cutting

Yes

Head size (a)

0.531 ˝

13.5 mm

Setting range radial (f)

0.354 ˝

9 mm

Width of groove (mm) (w)

0.079 ˝

2 mm

Corner radius (r)

0.008 ˝

0.2 mm

Katalog_SSC

114090L

Maximum depth of groove (tmax)

0.157 ˝

4 mm
