L114.0110.00 EG55

Recommended:

Also suitable for:

Material number L114011000EG55

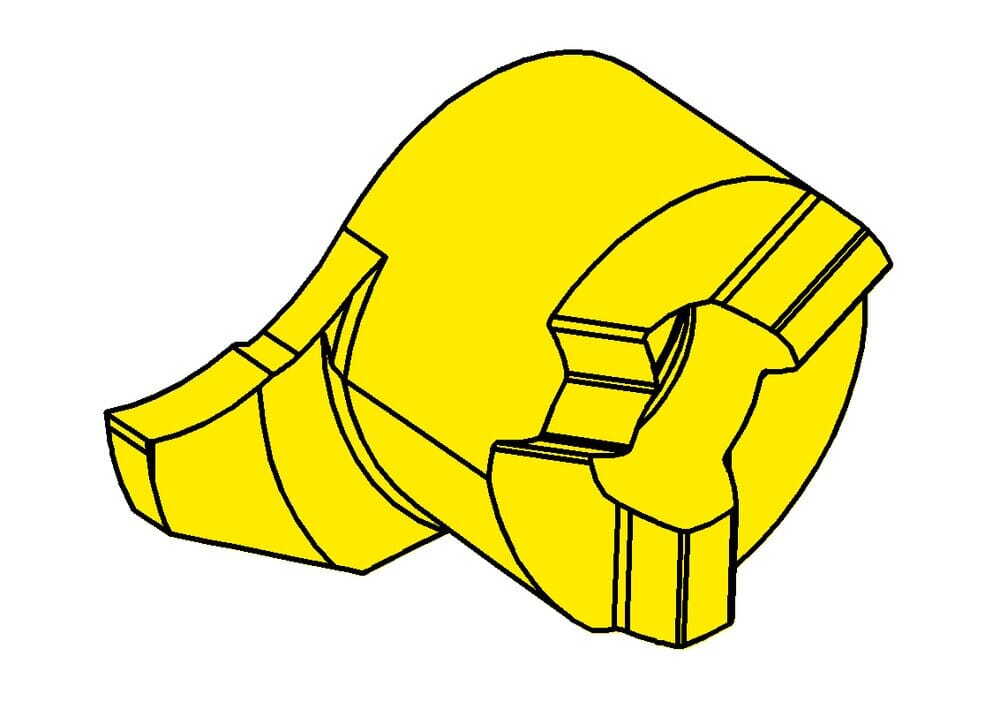

HORN Insert L114.0110.00 EG55 for Turning

Note: Widths for circlip grooves DIN 471/472.

Setting range radial (f)

0.354 ˝

9 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Head size (a)

0.531 ˝

13.5 mm

Nominal range (Nw)

0.043 ˝

1.1 mm

Width of groove (mm) (w)

0.047 ˝

1.19 mm

Katalog_SSC

114090L

Maximum depth of groove (tmax)

0.157 ˝

4 mm
