L114.0090.00 TN35

Recommended:

Also suitable for:

Material number L114009000TN35

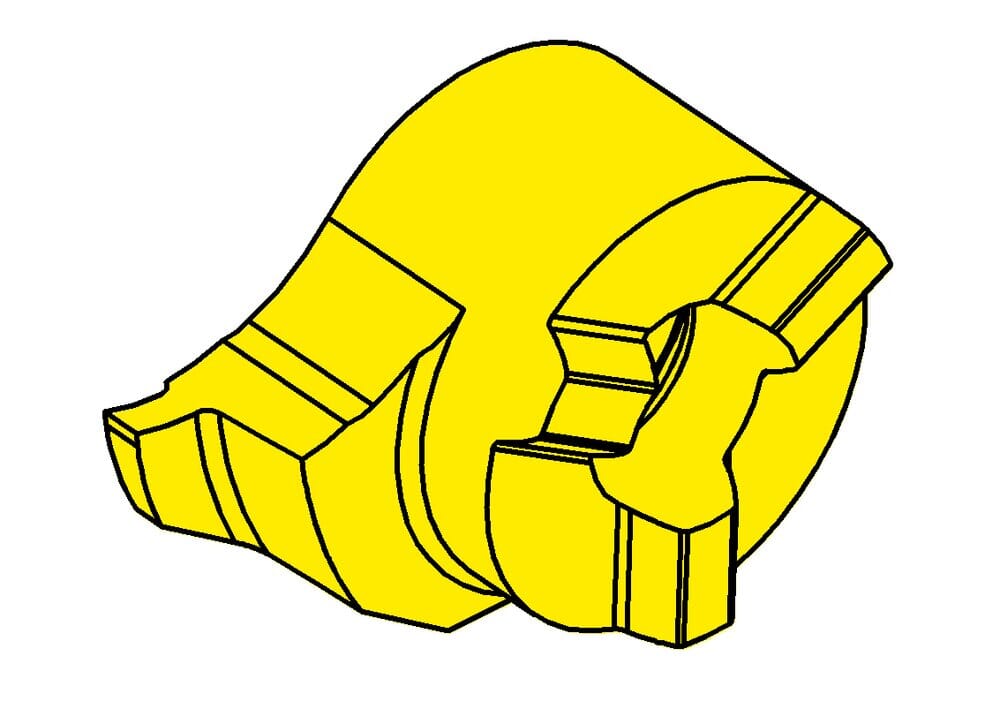

HORN Inserts L114.0090.00 TN35 for Turning

Note: Widths for circlip grooves DIN 471/472. Not face cutting, limited depth of cut.

tool-application

static

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Cutting insert height, Cutting insert thickness (s)

0.217 ˝

5.5 mm

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

machining-direction-sap

left

Setting range radial (f)

0.354 ˝

9 mm

us-cutting

Yes

Width of groove (w)

0.037 ˝

0.94 mm

Maximum depth of groove (tmax)

0.059 ˝

1.5 mm

Head size (a)

0.531 ˝

13.5 mm

Distance dimension cutting edge (s1)

5.3 mm

Distance dimension cutting edge (s1)

0.209 ˝

Katalog_SSC

114090L

Nominal range (Nw)

0.035 ˝

0.9 mm
