L114.0080.00 EG55

Recommended:

Also suitable for:

Material number L114008000EG55

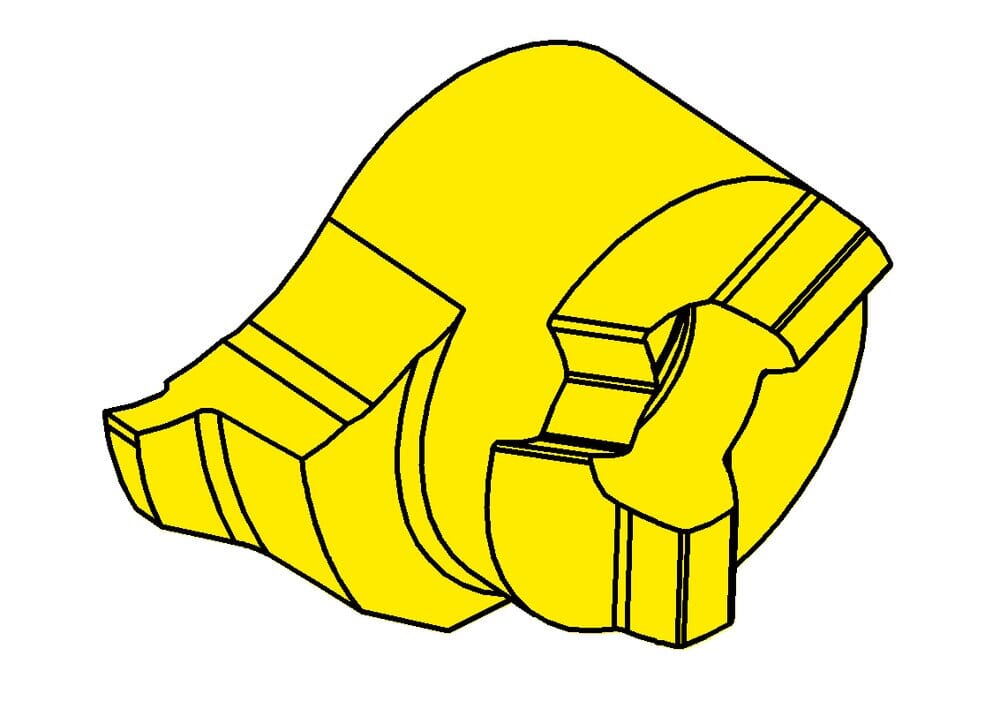

HORN Insert L114.0080.00 EG55 for Turning

Note: Widths for circlip grooves DIN 471/472. Not face cutting, limited depth of cut.

machining-direction-sap

left

Setting range radial (f)

0.354 ˝

9 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Cutting insert height, Cutting insert thickness (s)

0.217 ˝

5.5 mm

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

Nominal range (Nw)

0.031 ˝

0.8 mm

tool-application

static

us-cutting

Yes

Head size (a)

0.531 ˝

13.5 mm

Width of groove (mm) (w)

0.033 ˝

0.84 mm

Katalog_SSC

114090L

Distance dimension cutting edge (s1)

0.209 ˝

Distance dimension cutting edge (s1)

5.3 mm

Maximum depth of groove (tmax)

0.051 ˝

1.3 mm
