L111.4767.02 TN35

Recommended:

Also suitable for:

Material number L111476702TN35

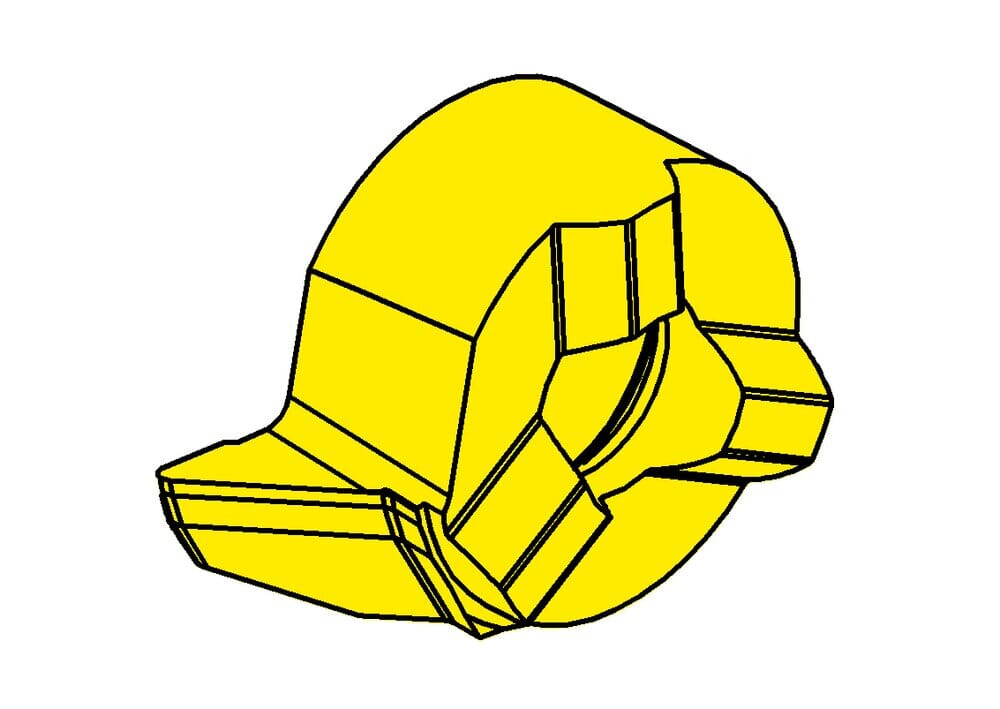

HORN Inserts L111.4767.02 TN35 for Turning

Tooth diameter, head diameter (d)

0.315 ˝

8 mm

cutting

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.433 ˝

11 mm

Cutting insert height, Cutting insert thickness (s)

0.156 ˝

3.95 mm

Top radius (r)

0.008 ˝

0.2 mm

Setting range radial (f)

0.264 ˝

6.7 mm

Katalog_SSC

111080L

Maximum depth of groove (tmax)

0.091 ˝

2.3 mm

Head size (a)

0.421 ˝

10.7 mm
