L111.3067.04 EG55

Recommended:

Also suitable for:

Material number L111306704EG55

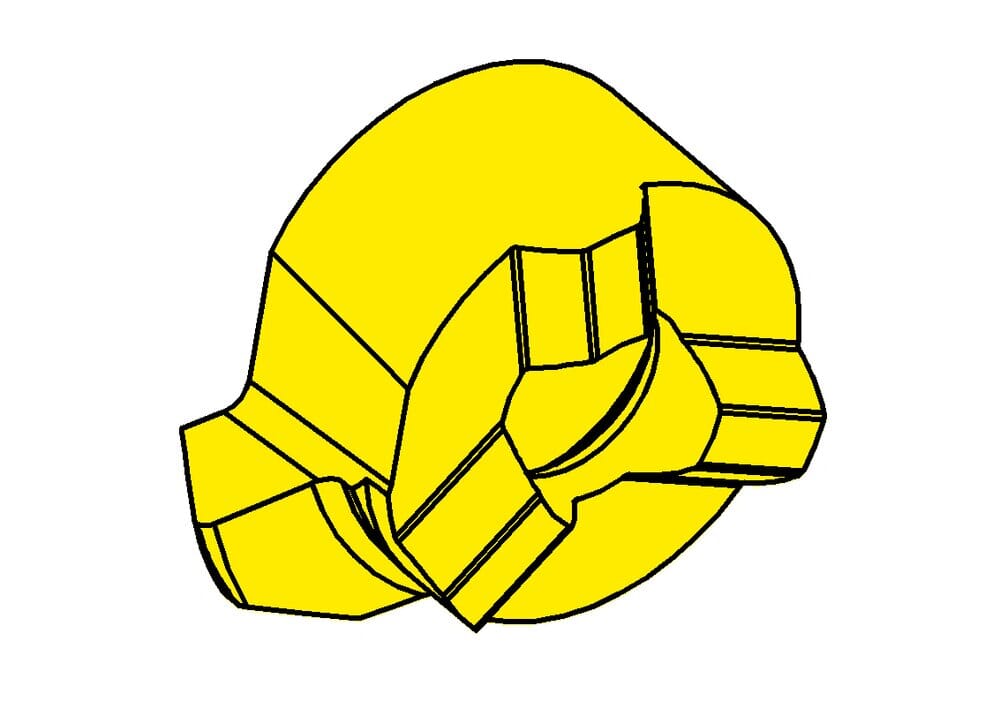

HORN Insert L111.3067.04 EG55 for Turning

Smallest bore diameter (Dmin)

0.433 ˝

11 mm

cutting

tool-application

static

machining-direction-sap

left

Cutting insert height, Cutting insert thickness (s)

0.163 ˝

4.15 mm

Tooth diameter, head diameter (d)

0.315 ˝

8 mm

Setting range radial (f)

0.264 ˝

6.7 mm

Top radius (r)

0.016 ˝

0.4 mm

Katalog_SSC

111080L

Cutting insert width (s1)

0.055 ˝

1.4 mm

Maximum depth of groove (tmax)

0.091 ˝

2.3 mm

Head size (a)

0.421 ˝

10.7 mm
