L111.0205.01 TN35

Also suitable for:

Material number L111020501TN35

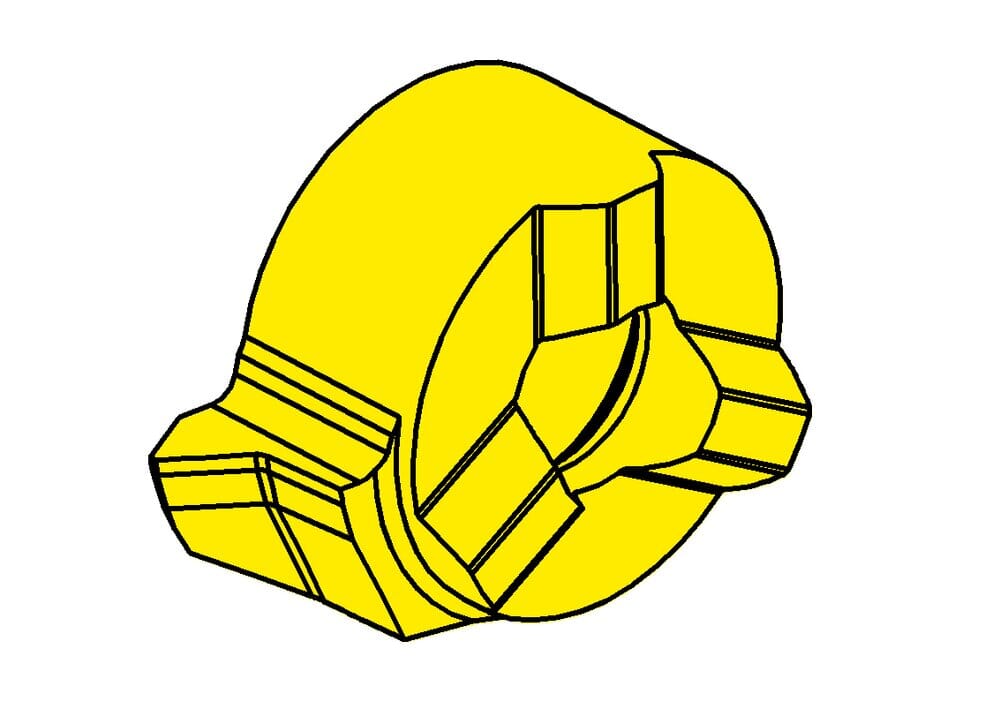

HORN Inserts L111.0205.01 TN35 for Gewinden

Setting length (E)

0.138 ˝

3.5 mm

tool-application

rotating

machining-direction-sap

left

Maximum pitch (Pmax)

0.03 ˝

0.75 mm

Pitch (P)

0.02 ˝

0.5 mm

Smallest bore diameter (Dmin)

0.433 ˝

11 mm

Cutting insert height, Cutting insert thickness (s)

0.163 ˝

4.15 mm

Cutting diameter (Ds)

0.528 ˝

13.4 mm

Tooth diameter, head diameter (d)

0.315 ˝

8 mm

Cutting insert width (a)

0.421 ˝

10.7 mm

Setting range radial (f)

0.264 ˝

6.7 mm

Katalog_SSC

111080L
