L110.2140.9.8 EG35
Recommended:
Material number L110214098EG35

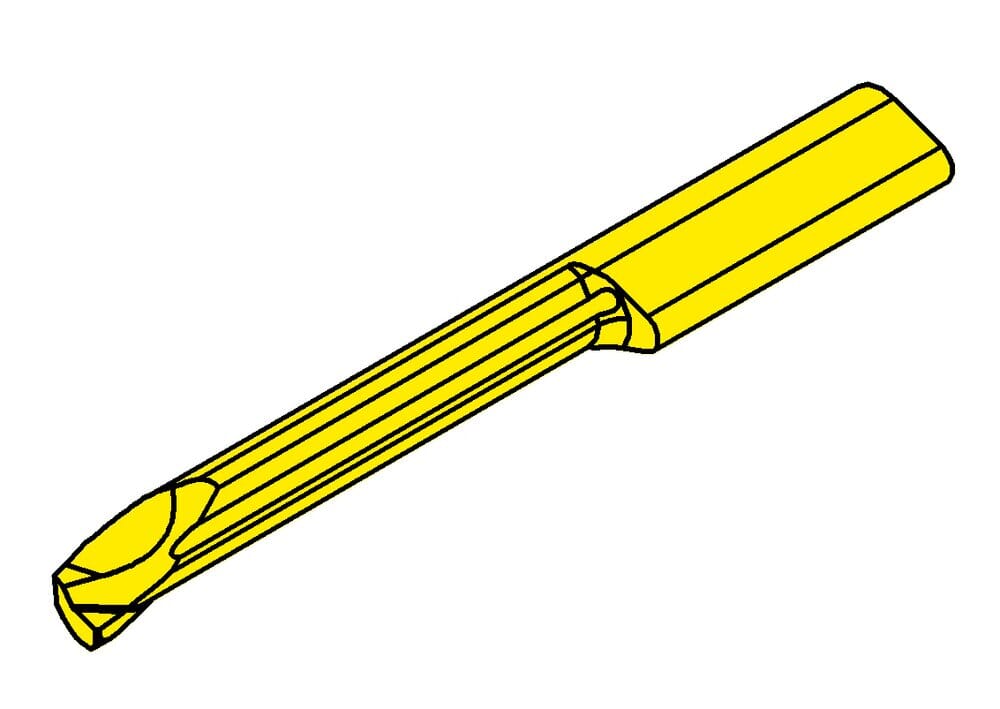

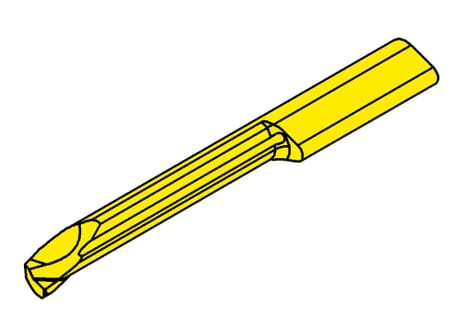

HORN Insert L110.2140.9.8 EG35 for Turning
Neck diameter (d)
0.236 ˝
6 mm
us-cutting
Yes
machining-direction-sap
left
tool-application
static
Smallest bore diameter (Dmin)
0.315 ˝
8 mm
Total length (l5)
3.15 ˝
80 mm
Setting range radial (f)
0.157 ˝
4 mm
Neck length (l2)
1.969 ˝
50 mm
Katalog_SSC
110260
Top radius (r)
0.008 ˝
0.2 mm
Maximum depth of groove (tmax)
0.02 ˝
0.5 mm
Head size (a)
0.291 ˝
7.4 mm
| Downloads | |
|---|---|
| L110_2140_9_8_EG35-DXF.DXF | Download |
| L110_2140_9_8_EG35-STP.STP | Download |
| L110_2140_9_8_EG35-ISO.XML | Download |
| L110_2140_9_8_EG35-DIN.XML | Download |
| Download all files | |
