L110.0200.9.0 TN35
Recommended:
Also suitable for:
Material number L110020090TN35

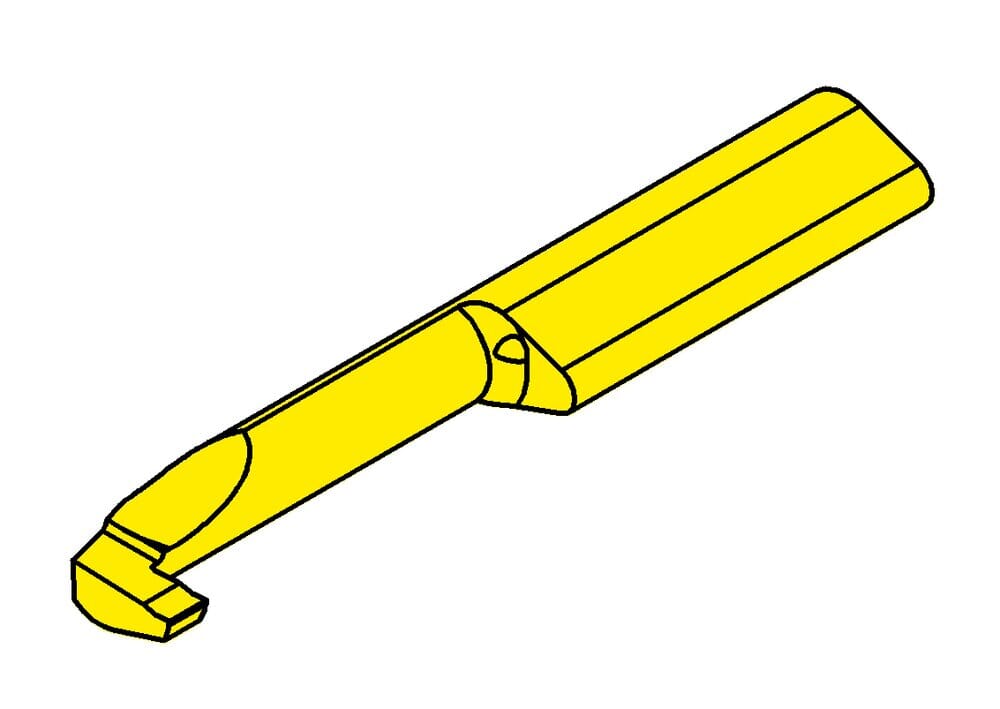

HORN Insert L110.0200.9.0 TN35 for Turning
Neck diameter (d)
0.197 ˝
5 mm
cutting
1
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.394 ˝
10 mm
Total length (l5)
3.15 ˝
80 mm
Setting range radial (f)
0.236 ˝
6 mm
Neck length (l2)
1.969 ˝
50 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
Katalog_SSC
110260
Maximum depth of groove (tmax)
0.157 ˝
4 mm
Head size (a)
0.37 ˝
9.4 mm
| Downloads | |
|---|---|
| L110_0200_9_0_TN35-ISO.XML | Download |
| L110_0200_9_0_TN35-DIN.XML | Download |
| L110_0200_9_0_TN35-DXF.DXF | Download |
| L110_0200_9_0_TN35-STP.STP | Download |
| Download all files | |
