L110.0200.7.8 EG35
Recommended:
Material number L110020078EG35

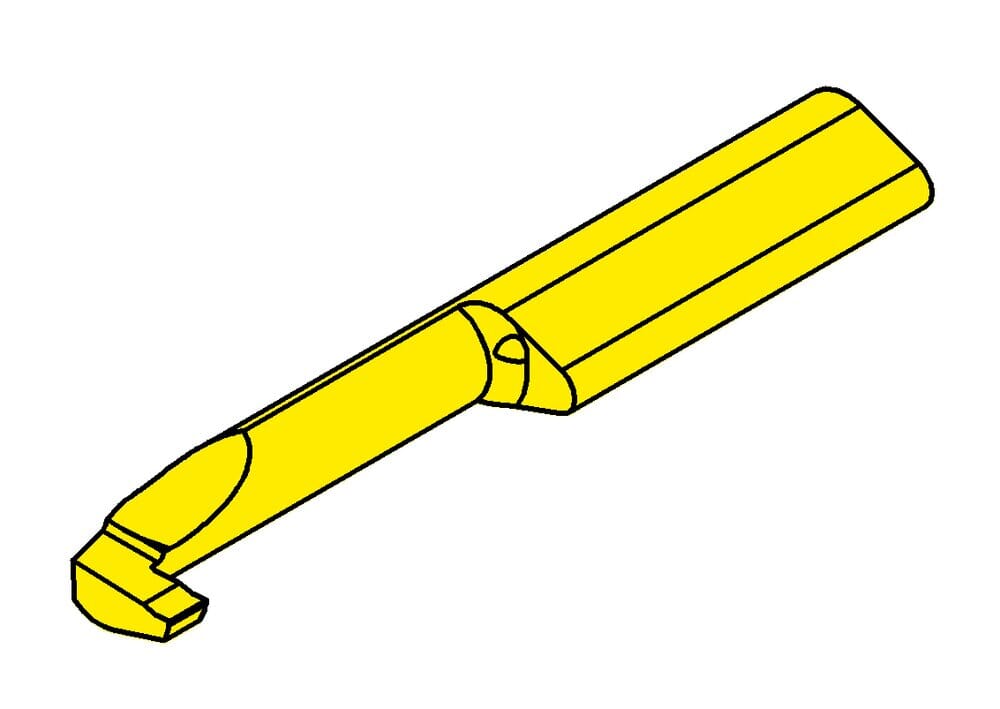

HORN Insert L110.0200.7.8 EG35 for Turning
Width of groove (mm) (w)
0.079 ˝
2 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.315 ˝
8 mm
Total length (l5)
2.756 ˝
70 mm
Setting range radial (f)
0.157 ˝
4 mm
Neck diameter (d)
0.165 ˝
4.2 mm
Neck length (l2)
1.575 ˝
40 mm
Katalog_SSC
110260
Maximum depth of groove (tmax)
0.11 ˝
2.8 mm
Head size (a)
0.291 ˝
7.4 mm
| Downloads | |
|---|---|
| L110020078.STP | Download |
| L110020078_20211119_151246800.DXF | Download |
| Download all files | |
