L110.0100.5.0 TN35
Recommended:
Also suitable for:
Material number L110010050TN35

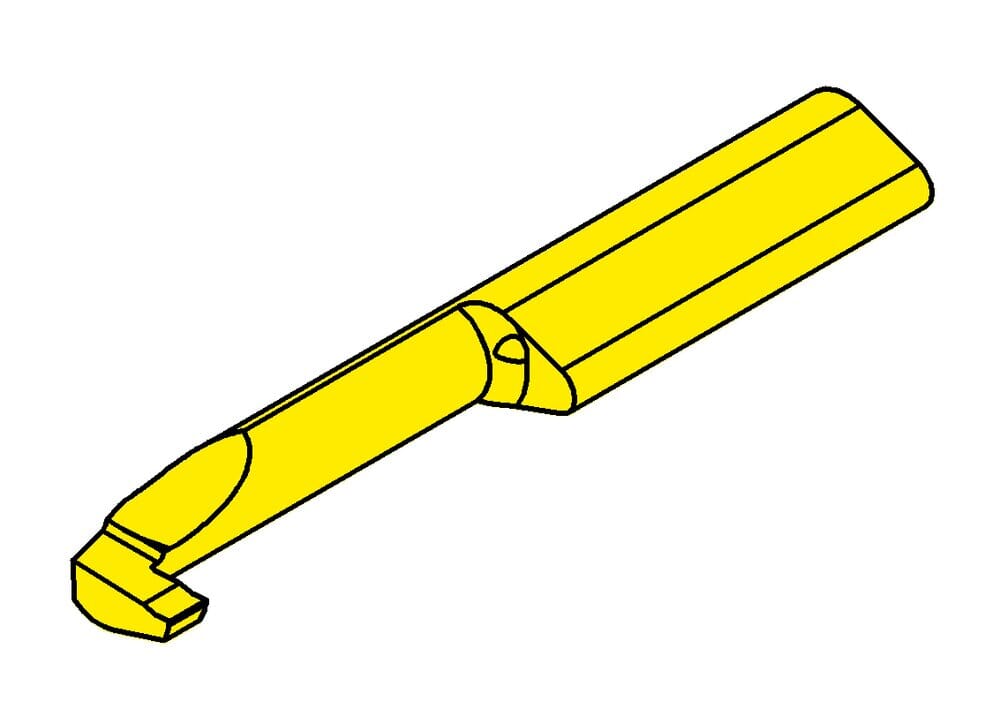

HORN Insert L110.0100.5.0 TN35 for Turning
Neck diameter (d)
0.197 ˝
5 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.394 ˝
10 mm
Total length (l5)
2.362 ˝
60 mm
Setting range radial (f)
0.236 ˝
6 mm
Neck length (l2)
1.181 ˝
30 mm
Width of groove (mm) (w)
0.039 ˝
1 mm
Katalog_SSC
110260
Maximum depth of groove (tmax)
0.157 ˝
4 mm
Head size (a)
0.37 ˝
9.4 mm
| Downloads | |
|---|---|
| L110010050.STP | Download |
| L110010050_20211119_151317176.DXF | Download |
| Download all files | |
