L10P.4545.1.02 EG55

Recommended:

Also suitable for:

Material number L10P4545102EG55

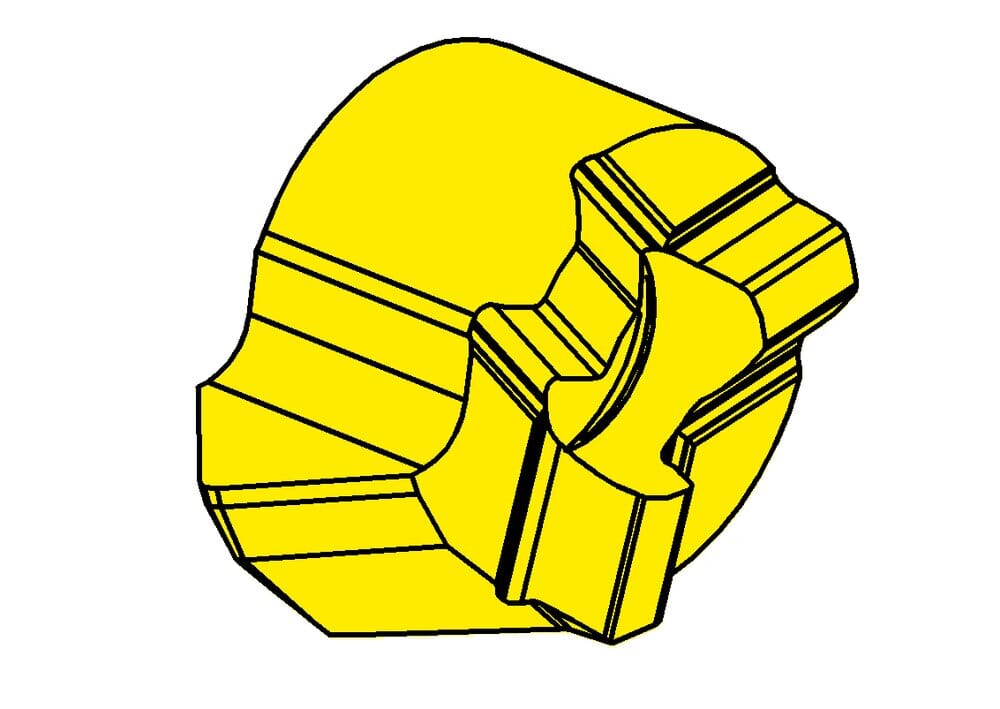

HORN Insert L10P.4545.1.02 EG55 for Turning

Tooth diameter, head diameter (d)

0.236 ˝

6 mm

machining-direction-sap

left

tool-application

static

Smallest bore diameter (Dmin)

0.354 ˝

9 mm

Chamfer size (tmax)

0.059 ˝

1.5 mm

Setting length (E)

0.075 ˝

1.9 mm

Corner radius (mm) (r)

0.008 ˝

0.2 mm

Setting range radial (f)

0.217 ˝

5.5 mm

Cutting insert width (a)

8.5 mm

Cutting insert thickness, setting length complete (s)

3.75 mm

Katalog_SSC

10P060L
