L10P.0250.1.02 EG55

Recommended:

Also suitable for:

Material number L10P0250102EG55

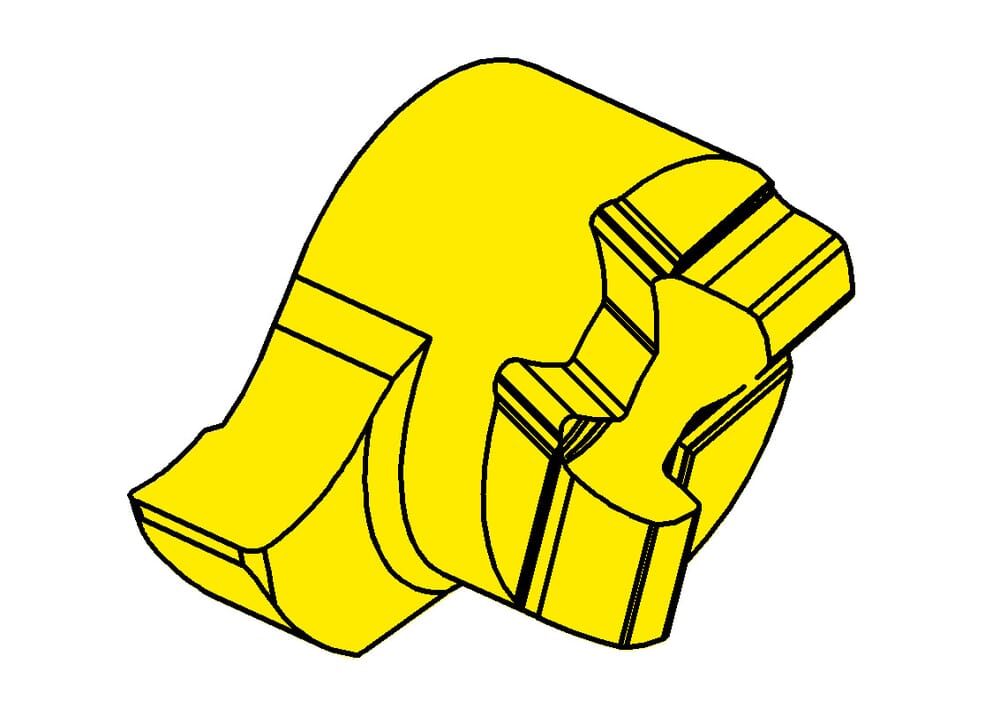

HORN Insert L10P.0250.1.02 EG55 for Turning

Width of groove (mm) (w)

0.098 ˝

2.5 mm

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.354 ˝

9 mm

Cutting insert height, Cutting insert thickness (s)

0.142 ˝

3.6 mm

Tooth diameter, head diameter (d)

0.236 ˝

6 mm

Setting range radial (f)

0.217 ˝

5.5 mm

Head size (a)

0.335 ˝

8.5 mm

Corner radius (r)

0.008 ˝

0.2 mm

Katalog_SSC

10P060L

Maximum depth of groove (tmax)

0.079 ˝

2 mm
